Connecting to the JACOB PIPEWORK SYSTEM couldn’t be easier
JACOB PIPEWORK SYSTEMS now include counterflanges in the series-manufactured range. In response to customer demand, JACOB has simplified transitions to the modular pipework system by introducing adapter flanges, which are available in square or round form. The new machine adapters are welded onto the machine outlet or inlet ports. Matching counterflanges from JACOB’s modular range can then be used to connect the adapters to the pipeline, simply and quickly, using bolts. Counterflanges are available in unprimed mild steel or stainless steel. They are used in conjunction with silicone or NBR gaskets to ensure reliable connections to the pipe system. Previously, the customer had to provide a counterflange or adapt it to the correct hole pattern.
The new counterflange completes the wide range of JACOB transitions and connection adapters, which also includes welding ends and transition pieces, for example.
The series manufactured range covers diameters from DN 80 to DN 300 mm. Larger diameters are available on request.
Specialised in dust extraction, exhaust air and bulk materials handling
JACOB is the leading manufacturer for pipe systems based on the modular concept in Europe with a world-wide market presence. Pipe systems for bulk material handling as well as dust extraction and exhaust air units for environmental engineering (cooling air/exhaust air) are the largest application areas for JACOB pipe systems (diameters 60 - 800 mm or larger for customised production, 1-3 mm pipe wall thickness, steel pipes are primed, galvanised or stainless steel).
Easy installations, in addition to innovative developments and the ability to quickly deliver from the warehouse, ensure an outstanding position for JACOB pipe systems in all industries which employ metal piping for manufacturing processes.
The main customers are in the chemistry and in the pharmaceutical or plastics industries or in the food industry (e.g. coffee, cacao, chocolate, sugar or in grain processing) or feed plants, the tobacco industry, the automotive industry, the chip industry, machine construction or in the paper and building materials industries.
(double click on picture to open in new window)
(double click on picture to open in new window)

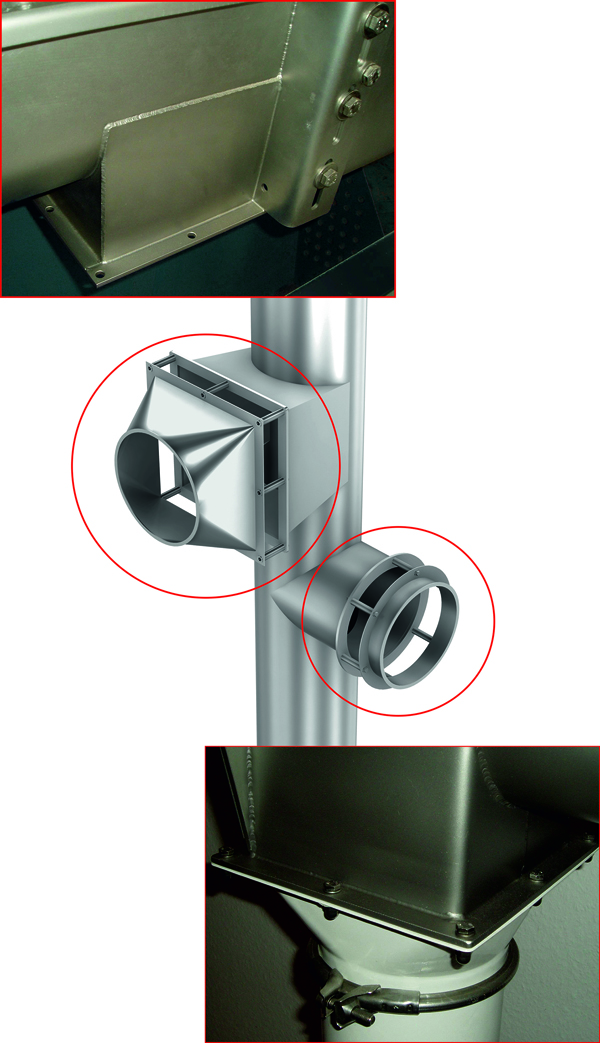

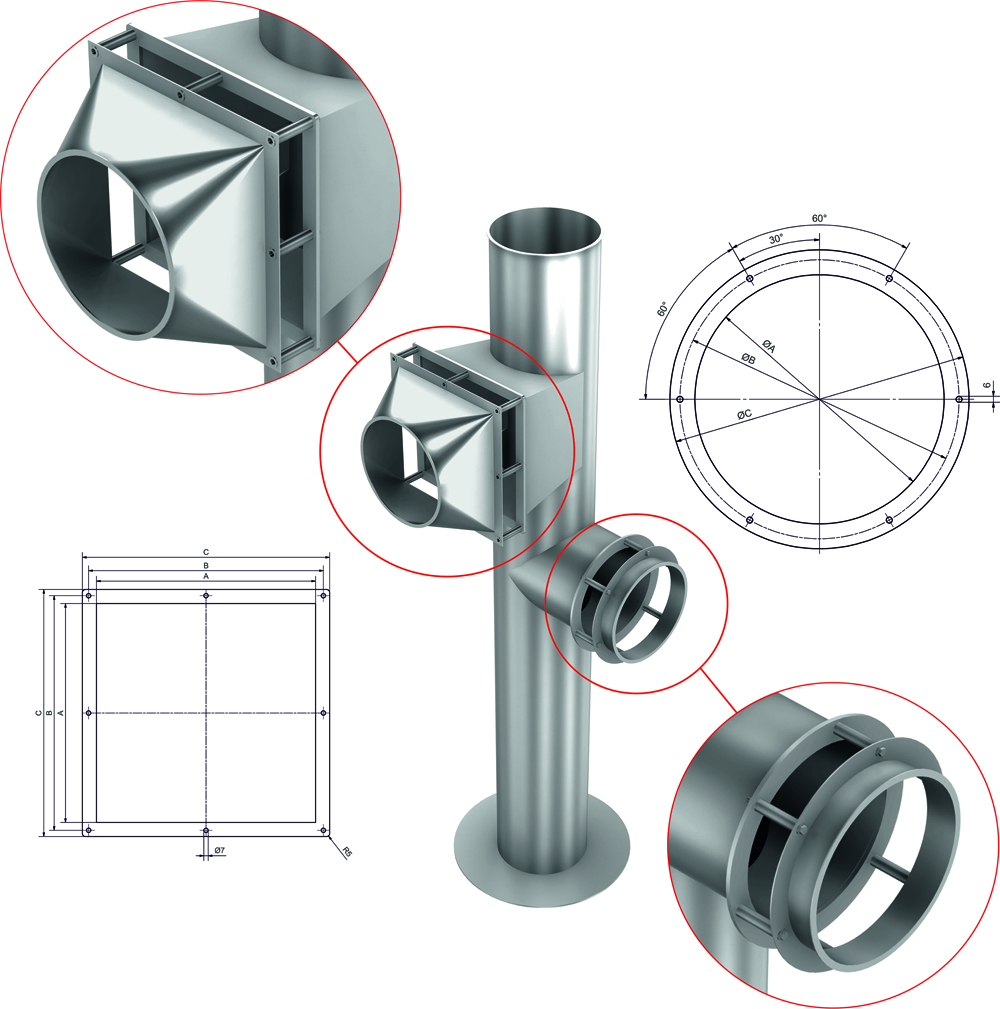

Machine connections made easy – JACOB’s counterflanges make it easier
than ever to create transitions to its modular, easy-to-install pipework system.
JACOB PIPEWORK Connections
Connecting to the JACOB PIPEWORK SYSTEM couldn’t be easier
JACOB PIPEWORK SYSTEMS now include counterflanges in the series-manufactured range. In response to customer demand, JACOB has simplified transitions to the modular pipework system by introducing adapter flanges, which are available in square or round form. The new machine adapters are welded onto the machine outlet or inlet ports. Matching counterflanges from JACOB’s modular range can then be used to connect the adapters to the pipeline, simply and quickly, using bolts. Counterflanges are available in unprimed mild steel or stainless steel. They are used in conjunction with silicone or NBR gaskets to ensure reliable connections to the pipe system. Previously, the customer had to provide a counterflange or adapt it to the correct hole pattern.
The new counterflange completes the wide range of JACOB transitions and connection adapters, which also includes welding ends and transition pieces, for example.
The series manufactured range covers diameters from DN 80 to DN 300 mm. Larger diameters are available on request.
Specialised in dust extraction, exhaust air and bulk materials handling
JACOB is the leading manufacturer for pipe systems based on the modular concept in Europe with a world-wide market presence. Pipe systems for bulk material handling as well as dust extraction and exhaust air units for environmental engineering (cooling air/exhaust air) are the largest application areas for JACOB pipe systems (diameters 60 - 800 mm or larger for customised production, 1-3 mm pipe wall thickness, steel pipes are primed, galvanised or stainless steel).
Easy installations, in addition to innovative developments and the ability to quickly deliver from the warehouse, ensure an outstanding position for JACOB pipe systems in all industries which employ metal piping for manufacturing processes.
The main customers are in the chemistry and in the pharmaceutical or plastics industries or in the food industry (e.g. coffee, cacao, chocolate, sugar or in grain processing) or feed plants, the tobacco industry, the automotive industry, the chip industry, machine construction or in the paper and building materials industries.
(double click on picture to open in new window)
(double click on picture to open in new window)
Machine connections made easy – JACOB’s counterflanges make it easier
than ever to create transitions to its modular, easy-to-install pipework system.
