“These units solve problems common to the precast industry by delivering as much power on the inside of the smaller diameter core as on the outside,” said Larry Horrie, Distributor Manager at Martin Engineering. “By providing consistent consolidation, the vibrator helps operators produce stronger casts with fewer bug holes or voids.”

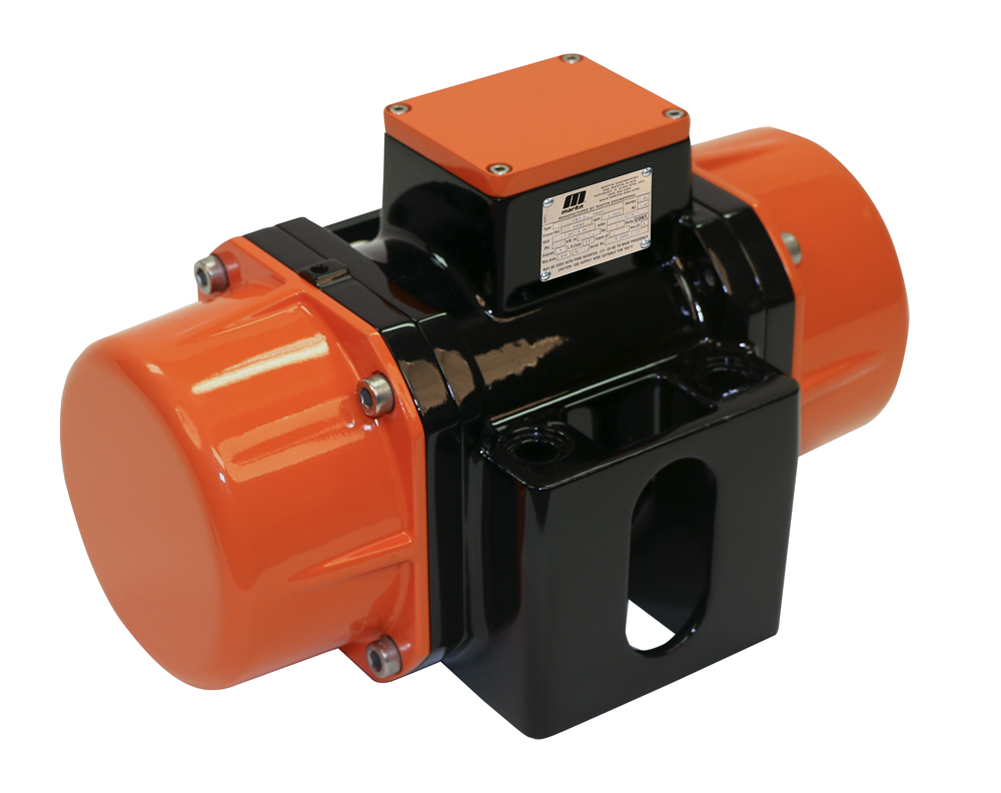

Although it’s only 14.4 in (365 mm) wide, the competitively priced MB36-3000 is engineered to be one of the most durable units on the market. By offering an industry-leading 3-year warranty, Martin Engineering stands behind the value and dependable performance for which the company’s equipment has become known.“Our customers were requesting this specific type of model for their precast concrete pipe forms, and this design is the result of meticulous research, engineering and testing,” Horrie concluded. “The efficient, compact design and performance guarantee reflects our commitment to superior construction and a lower life-cycle cost. It also allows our customers to standardize on one unit for a wide range of applications.The compact design permits easier installation in tight spaces. Able to fit most standard mounting configurations, the 230/460 volt, 3 Phase, 60Hz motor runs at 3450 RPM, allowing the unit to supply a centrifugal force output of 3000 lbf (13.3 kN) using permanently lubricated roller bearings in ductile iron bearing flanges. Adjustable eccentric weights enable operators to customize force, save energy and maximize the life of the vibrator.

To mitigate material accumulation, dust and moisture penetration commonly found in precast applications, the resilient aluminum casing has a smooth gloss coating and covers sealed by O-rings. Internal high temperature Class H windings are able to withstand continual use in a heated, sealed environment, further ensuring reliability.Martin Engineering is a global innovator in the bulk material handling industry, developing new solutions to common problems and participating in industry organizations to improve safety and productivity. The company’s series of Foundations books (available free in print and online) is an internationally-recognized resource for safety, maintenance and operations training -- with an estimated 10,000 copies in circulation around the world -- and employees take an active part in ASME, SME, VDI, CMA and CEMA. The firm also played a pivotal role in writing and producing the 7th edition of the CEMA reference book, Belt Conveyors for Bulk Materials. Martin Engineering products, sales, service and training are available from factory-owned business units in Australia, Brazil, China, France, Germany, India, Indonesia, Italy, Mexico, Peru, Russia, Spain, South Africa, Turkey and the UK. © 2017 Martin Engineering Company. All rights reserved. Martin Engineering products are protected by U.S. Patents, corresponding foreign patents and patents pending. Additional information can be obtained at www.martin-eng.com/trademarks.
■
