Chain Bucket Continuous Ship Unloader
Posted on
12. Mar. 2008 - 07:38
Frank.Liu
Shanghai Shuoli Machinery Co., Ltd.
Add:Room305 No.1 Lane777 No.2 ZhongShan Road(S), Shanghai, China
P.C: 200032
Mob: 0086-159 2119 3896
Tel: 0086-21-54255305 ext.8010
Fax: 0086-21-54258159
Web:www.slgrab.com
E-mail:zhongbingliu@163.com
Messenger:zhongbingliu@hotmail.com ■

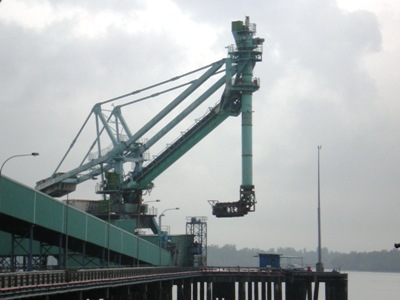

Chain Bucket Continuous Ship Unloader
Dear Sir/Madam
We have a used Chain Bucket Continuous Ship Unloader want to
sale.
1. Model
>>CSU 1300
2. Year build
>> 1998
3. Engine type
>> Electrical Supply - 11kV
>> Operation Voltage - 415V AC,50Hz. 3phase
>> Control Voltage - 240V AC, 50Hz
>> Signal Voltage - 24V DC
>> Type Of Control - PLC
>> Type Of PLC - Siemens
4. Capacity
>> conveying volume Max.1000 m3/h
5. Weight/height/width
>> Weight-
>> Height-33750mm
>> Width-10000mm
6. Dimension / diagram/booklet
>> Dimension- in mm
>> Diagram - Schematic diagram
>> Booklet - Electrical & Mechanical Drawing & Spare part
7. bucket performance
>> Bucket elevator Capacity Max 1300t/h Base on a density of 1.3t/m3
>> Volume Of Bucket- Water content 0.188m3 = 188.01L
>> Chain Speed- VK=0.15-1.7 m/sec
8. Limitation of outreach
>> Boom Length-29500mm
>> Hoisting distance of Boom tip from -20 degr. to +48 degr
>> Slewing Gear Boom Range 180 degr.
>> Slewing Gear Elevator Range 360 degr.
Attachments
800t-b (JPG)
■
