Hellweg Maschinenbau GmbH & Co. KG is presenting at Fakuma 2008 (Friedrichshafen, 14-18 October 2008, Hall A1, Stand 1005) a new lump granulator that enables single stage shredding of even solid start-up lumps and similar items. The MG 450/300 BR, where “BR” stands in German for Brocken = lumps, has been is made in a stable welded design that guarantees quiet running, even when under conditions of heavy load.
The rotor of the lump granulator is made from one piece of metal and therefore has enormous stability in transfer of even high torque. The geometry used for the blades enables a cutting principle that is based on a so-called “peeling cut”, combined with limitation of cutting depth. This prevents the rotor blade from penetrating too deeply into the plastic lumps being shredded. The material is “peeled off” from the lumps so that blockage of the rotor is prevented and fast and energy-saving shredding is guaranteed. This type of granulator is usually applied to shredding of polyolefins and many engineering plastics. The ground material produced is characterized by its quality in terms of homogeneity and a low level of dust.
The diameter of the 6-blade U-CUT rotor used is 300 mm, with working width of 450 mm. As they are reversible, the U-CUT blades can be used on both sides and re-sharpened many times. Achievable throughput performance amounts to approx. 250-500 kg/h with screen perforation diameters of approx. 5-12 mm and installed drive power of 30 kW. Overall weight amounts to approx. 2,200 kg.
An entire sound protection enclosure for the lump granulator can also be offered as an option.
About Hellweg Maschinenbau
Hellweg Maschinenbau GmbH & Co. KG designs and constructs its own machinery and equipment, especially for specific customer requirements, for customers in the plastics and recycling industries throughout the world. The production programme includes machine-side granulators, granulators, edge strip shredders, feeding equipment for edge strips, film cutters, extraction and dust removal equipment, including accessories.
New Lump Granulator
Single stage shredding of solid start-up lumps
Hellweg Maschinenbau GmbH & Co. KG is presenting at Fakuma 2008 (Friedrichshafen, 14-18 October 2008, Hall A1, Stand 1005) a new lump granulator that enables single stage shredding of even solid start-up lumps and similar items. The MG 450/300 BR, where “BR” stands in German for Brocken = lumps, has been is made in a stable welded design that guarantees quiet running, even when under conditions of heavy load.
The rotor of the lump granulator is made from one piece of metal and therefore has enormous stability in transfer of even high torque. The geometry used for the blades enables a cutting principle that is based on a so-called “peeling cut”, combined with limitation of cutting depth. This prevents the rotor blade from penetrating too deeply into the plastic lumps being shredded. The material is “peeled off” from the lumps so that blockage of the rotor is prevented and fast and energy-saving shredding is guaranteed. This type of granulator is usually applied to shredding of polyolefins and many engineering plastics. The ground material produced is characterized by its quality in terms of homogeneity and a low level of dust.
The diameter of the 6-blade U-CUT rotor used is 300 mm, with working width of 450 mm. As they are reversible, the U-CUT blades can be used on both sides and re-sharpened many times. Achievable throughput performance amounts to approx. 250-500 kg/h with screen perforation diameters of approx. 5-12 mm and installed drive power of 30 kW. Overall weight amounts to approx. 2,200 kg.
An entire sound protection enclosure for the lump granulator can also be offered as an option.
About Hellweg Maschinenbau
Hellweg Maschinenbau GmbH & Co. KG designs and constructs its own machinery and equipment, especially for specific customer requirements, for customers in the plastics and recycling industries throughout the world. The production programme includes machine-side granulators, granulators, edge strip shredders, feeding equipment for edge strips, film cutters, extraction and dust removal equipment, including accessories.
For more information, please visit:
https://edir.bulk-online.com/oldedirredirect/202702.htm
http://www.google.com/search?hl=de&c...btnG=Suche&lr=
Photo:

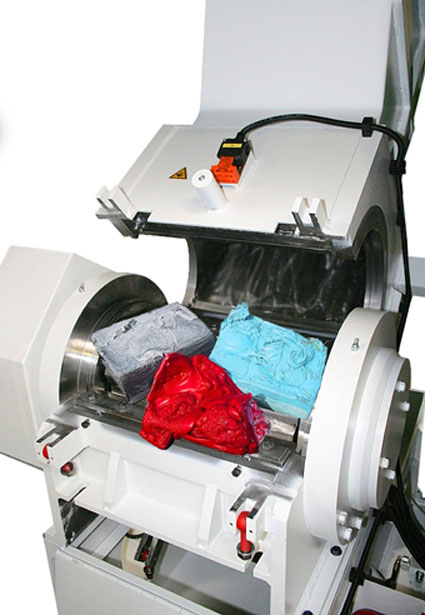

MG 450/300 BR lump granulator
(Photo: Hellweg Maschinenbau)
