Hense Wägetechnik GmbH is a specialist in dynamic and static Bulk weighing systems. Based on more than 30 years of application experience we offer complete weighing solutions for raw material silos (also retrofitable systems), tanks, mixer and reactors.
For solid flow measurement Hense offer precise and maintenance free systems to measure the mass flow on conveyor belts, in pneumatic feeding lines and for free falling products.
The Hense Wägetechnik strength is in individual customer consultation - it does not matter, if new system or existing plants - the Hense Technician select the best system solution when all process conditions have been considered. As a result Hense offers a system solution with a guarantee of optimum operation.
Product Range of Hense Wägetechnik GmbH:
•Retrofitable weighing systems for Silos up 1000 t
•Load cells and weighing modules for silos, tanks and mixers
•Belt scales, weight feeders and weighed screw conveyors
•Solid flow measurement in pneumatic conveying systems
•Gravimetric Flow Meter for free falling product
(double click on picture to open in new window)

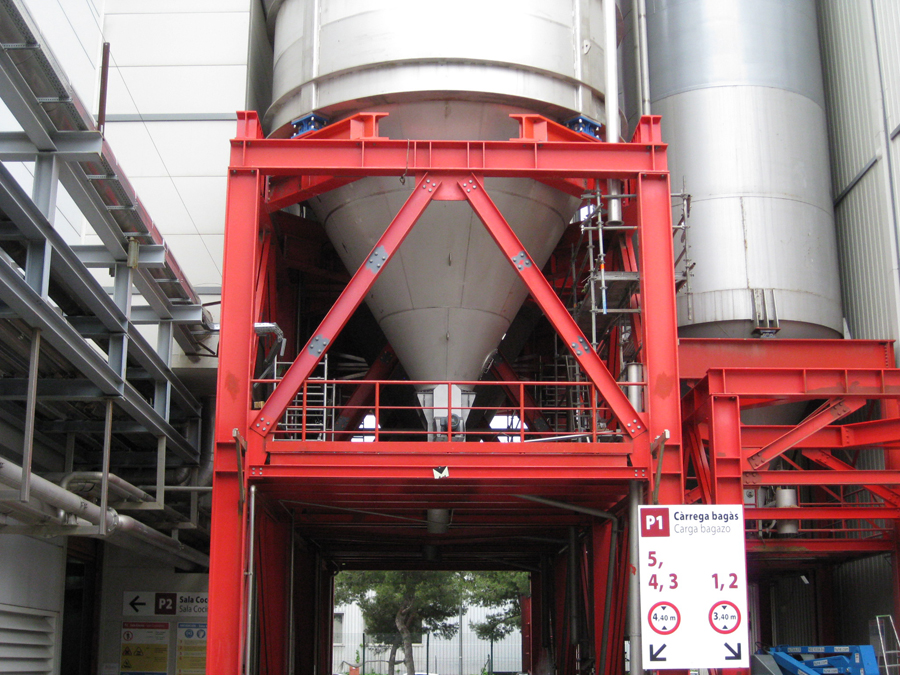

Fig. 1:
The Hense Loading assemblies Typ Safemount
The Hense Loading assemblies Typ Safemount (Fig. 1)
(with TÜV certificate)
The Safemount loading assemblies are very easy to install - on request Hense Wägetechnik provides load cell dummies - this dummies can be replace after the silos are installed. All modules provide integral fixing of their casing to the hopper and can be securely screwed in place with the casing bases or brackets. The loading assemblies are very resistant against horizontal forces and allow thermal expansion of the silo body.
Features:
•Load Ranges from 5 - 150t
•No rods or stay bars required
•Stainless steel load cell and nylon coated assembly
•up to 5 years warranty
•ATEX approval for zone 1/2/11/21/22 available
•TÜV approval for 50 and 60t assembly
FlowSlide and FlowCube meter provide precise solid flow measurement (Fig. 2)
(double click on picture to open in new window)

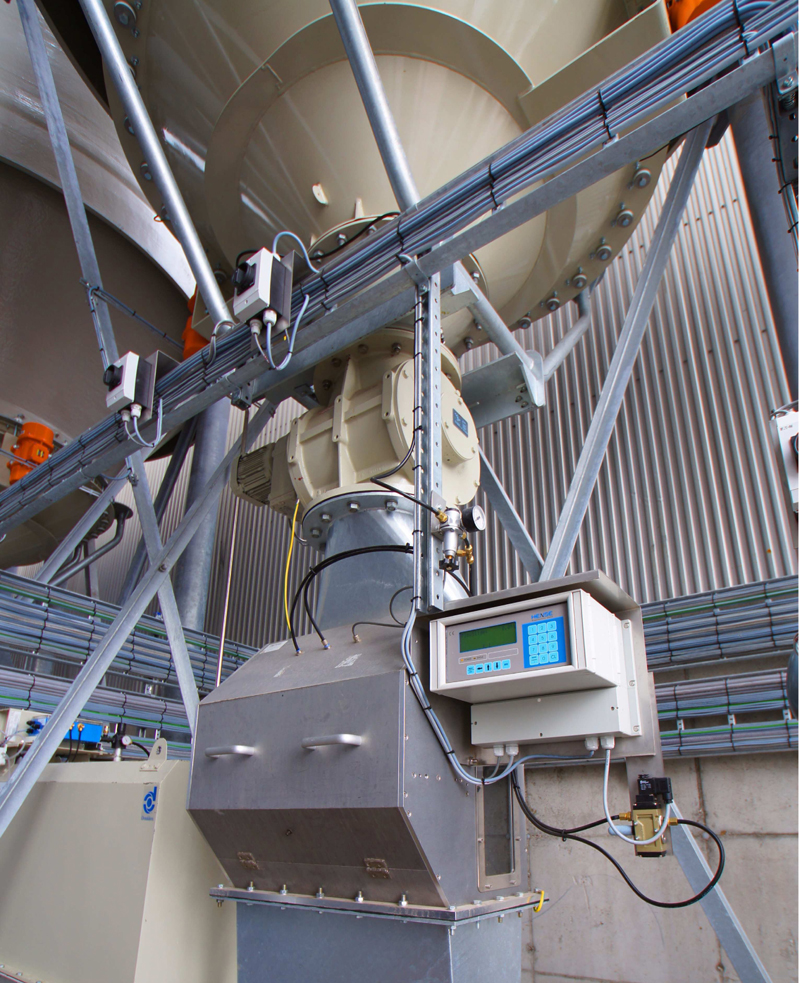

Fig. 2:
FlowSlide and FlowCube meter provide
precise solid flow measurement
Inside the FlowSlide meter the product is running over a curved slide. The product is generating a centripetal force directly proportional to the flow rate. Due to the special force transmission into the load cell, the measurement is almost unaffected by product density, grain size and friction.
Advantages
•Measurement independent from grain size and density
•excellent repeatability and accuracy
•factory calibrated
•very low maintenance
The FlowCube system offers a new method of direct measurement of bulk density and mass flow. There is no calibration required. The systems starts with a self calibration run and display bulk density (kg/m) and flow rate (kg/h). The FlowCube is able to measure free flowing product at a very economic price.
Flow Measurement in pneumatic feed lines (Fig. 3)
The new MIC - transducer of Hense Wägetechnik GmbH is based on the latest microprocessor technology. The microwave transducer measures the flow of solid particles in pipes. The sensor operates maintenance free and without contact to the product. The stainless steel sensor tube (V4A) is protected with a ceramic coating. A high temperature version up to 200C is available.
The transducer design is not depending on the diameter of the measuring pipe. A comfortable software is provided for calibration and monitoring via the USB - interface. A low cost version of the MIC sensor is available for flow detection.
Bulk Weighing Systems
Hense Waegetechnik GmbH
General:
Hense Wägetechnik GmbH is a specialist in dynamic and static Bulk weighing systems. Based on more than 30 years of application experience we offer complete weighing solutions for raw material silos (also retrofitable systems), tanks, mixer and reactors.
For solid flow measurement Hense offer precise and maintenance free systems to measure the mass flow on conveyor belts, in pneumatic feeding lines and for free falling products.
The Hense Wägetechnik strength is in individual customer consultation - it does not matter, if new system or existing plants - the Hense Technician select the best system solution when all process conditions have been considered. As a result Hense offers a system solution with a guarantee of optimum operation.
Product Range of Hense Wägetechnik GmbH:
•Retrofitable weighing systems for Silos up 1000 t
•Load cells and weighing modules for silos, tanks and mixers
•Belt scales, weight feeders and weighed screw conveyors
•Solid flow measurement in pneumatic conveying systems
•Gravimetric Flow Meter for free falling product
(double click on picture to open in new window)
Fig. 1:
The Hense Loading assemblies Typ Safemount
The Hense Loading assemblies Typ Safemount (Fig. 1)
(with TÜV certificate)
The Safemount loading assemblies are very easy to install - on request Hense Wägetechnik provides load cell dummies - this dummies can be replace after the silos are installed. All modules provide integral fixing of their casing to the hopper and can be securely screwed in place with the casing bases or brackets. The loading assemblies are very resistant against horizontal forces and allow thermal expansion of the silo body.
Features:
•Load Ranges from 5 - 150t
•No rods or stay bars required
•Stainless steel load cell and nylon coated assembly
•up to 5 years warranty
•ATEX approval for zone 1/2/11/21/22 available
•TÜV approval for 50 and 60t assembly
FlowSlide and FlowCube meter provide precise solid flow measurement (Fig. 2)
(double click on picture to open in new window)
Fig. 2:
FlowSlide and FlowCube meter provide
precise solid flow measurement
Inside the FlowSlide meter the product is running over a curved slide. The product is generating a centripetal force directly proportional to the flow rate. Due to the special force transmission into the load cell, the measurement is almost unaffected by product density, grain size and friction.
Advantages
•Measurement independent from grain size and density
•excellent repeatability and accuracy
•factory calibrated
•very low maintenance
The FlowCube system offers a new method of direct measurement of bulk density and mass flow. There is no calibration required. The systems starts with a self calibration run and display bulk density (kg/m) and flow rate (kg/h). The FlowCube is able to measure free flowing product at a very economic price.
Flow Measurement in pneumatic feed lines (Fig. 3)
The new MIC - transducer of Hense Wägetechnik GmbH is based on the latest microprocessor technology. The microwave transducer measures the flow of solid particles in pipes. The sensor operates maintenance free and without contact to the product. The stainless steel sensor tube (V4A) is protected with a ceramic coating. A high temperature version up to 200C is available.
The transducer design is not depending on the diameter of the measuring pipe. A comfortable software is provided for calibration and monitoring via the USB - interface. A low cost version of the MIC sensor is available for flow detection.
(double click on picture to open in new window)

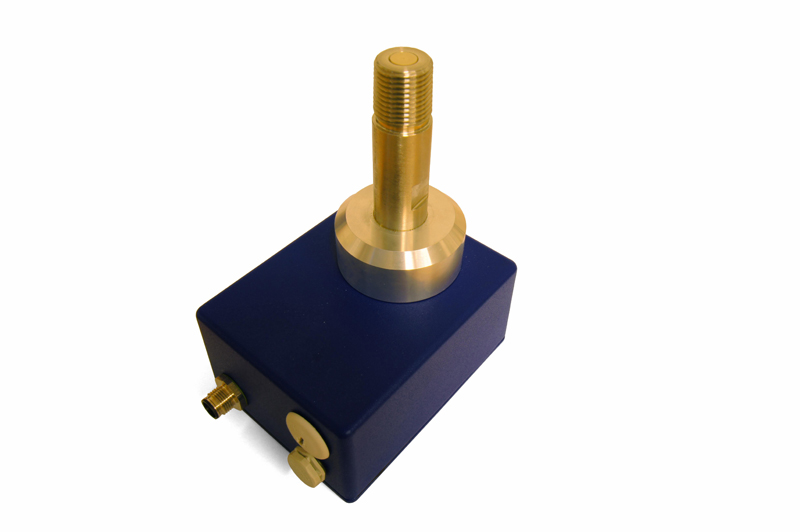

Fig. 3:
Flow Measurement in pneumatic feed lines
