TS 842 – the largest Radial Telescopic Stacker in Denmark
Deep down in the largest gravel pit in Denmark you find the largest mobile conveyor in the country – a Telestack TS 842.
NSI is the largest producer of sand and gravel in Denmark and at their gravel pit in Roskilde close to the capital city of Copenhagen they now have the enormous Telestack TS 842 at work in conjunction with a mobile crushing plant. This set-up – the crusher and the TS 842 – is producing road base material to a large number of infrastructural projects at the city of Copenhagen which is growing rapidly.
The TS 842 is the largest mobile conveyor in Denmark. The telescopic Telestack TS 842 has been working for many years all over the world including Scandinavia but the NSI unit is a first for Denmark. NSI’s Roskilde gravel pit is the oldest and largest in Denmark and their willingness to embrace new technology and new methods to process and handle their materials means they can really can utilize the impressive Telestack10997 telestack international.htm telescopic conveyor and take advantage of the signicant advantages of lower operating costs, better environmental performance and improved site safety.

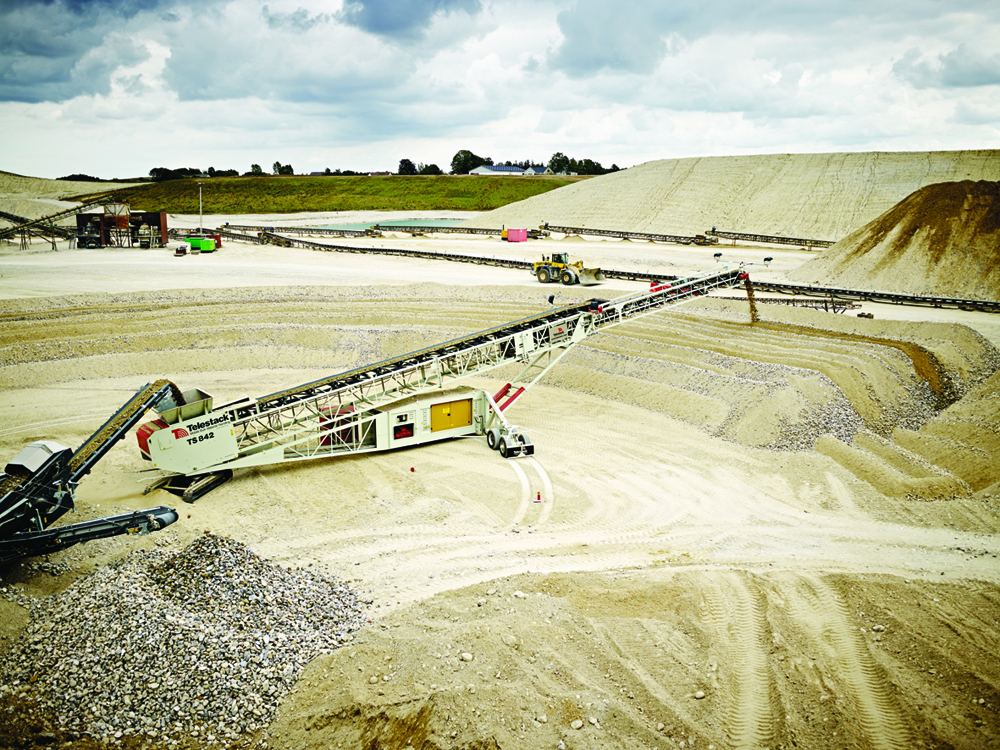

TS 842 Radial Telescopic Stockpiler working in Denmark’s largest gravel pit
60,000 m3 in the stockpile
The TS 842 purchased by NSI is well equipped. It is installed with a sophisticated PLC-system where the operator can select the number of degrees the conveyor should travel radially. By swiveling radially from side to side in a radius of 270 degrees the customer can now produce 60,000 m3 which equals approximately 97,000 tonnes of road base material before the operator needs to move the crusher and the Telestacksearch?q=telestack+site:bulk online.com&source=lnms&tbm=isch TS 842. The Telestack conveyor, which is working like a giant telescope, can extend from 26m to 42m. The stockpiles can be up to 12 meters high and the capacity of up to 800 tonnes per hour.
There are many options available with Telestacksearch?q=telestack stackers so they suit each individual application. These include integrated generator and crawler tracks for a fully independent unit that is easy and safe to move around the site. The radio remote control also makes for smoother operations. There are also important environmental dust suppression measures options available such as galvanised or canvas dust covers, telescopic dust covers, dust extraction, rubber ‘sock’ chutes, water suppression and many more.

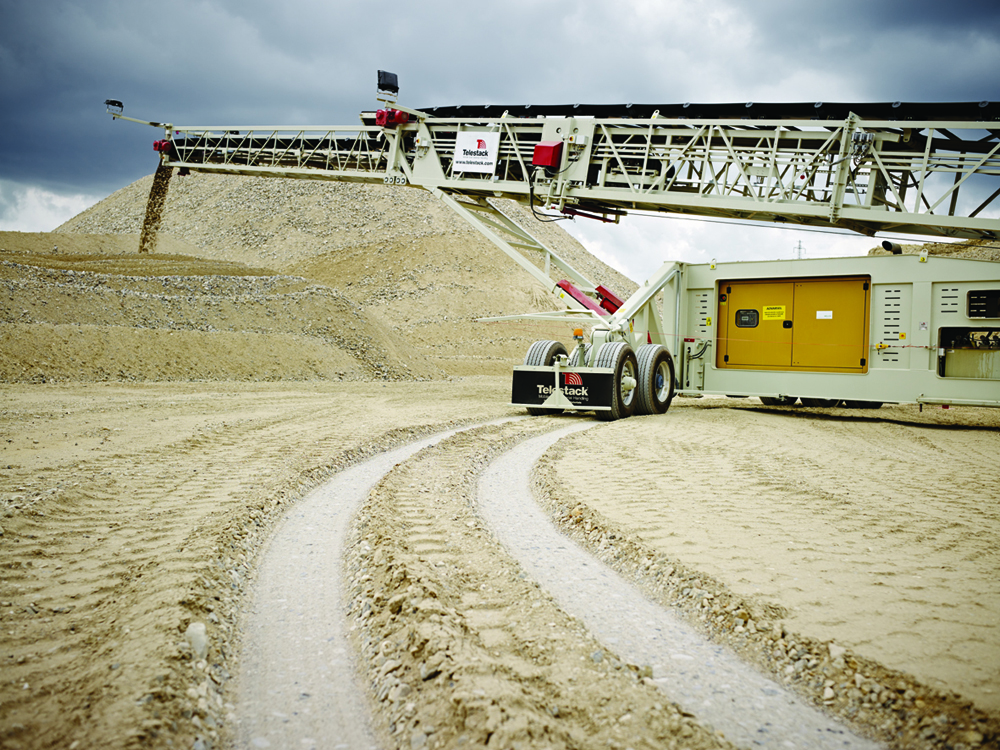

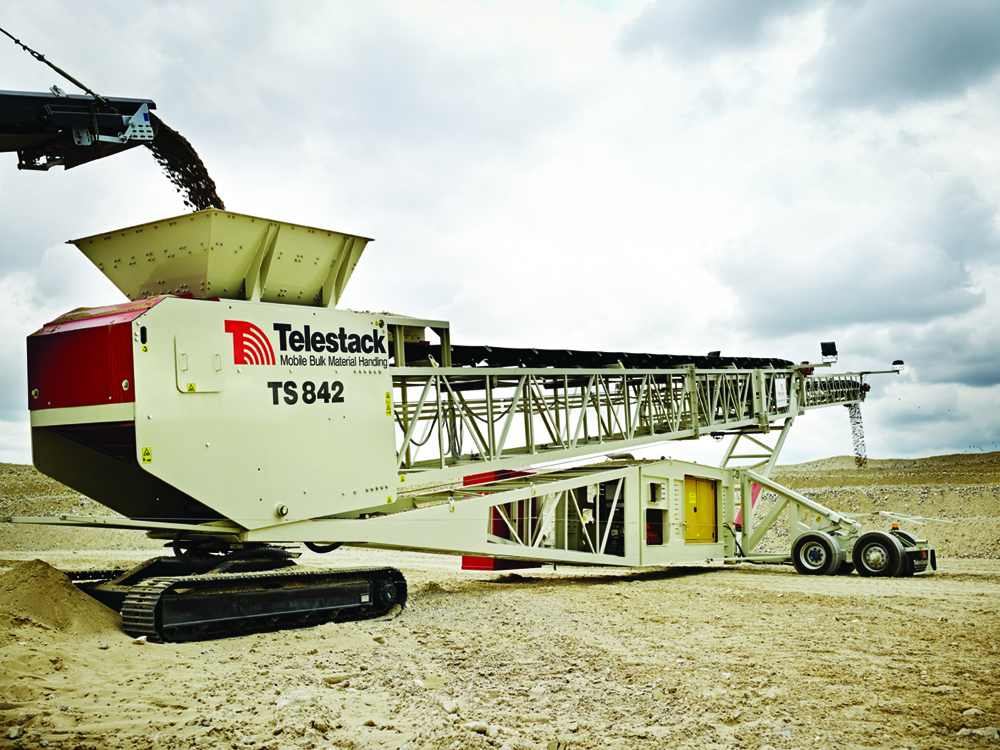

The TS 842 Radial Telescopic Stockpiler is fully mobile and has an independent integrated gen-set
The radial telescopic stacker is one of the most cost efficient and effective ways of stockpiling material on the market. The reduction of segregation, degradation, contamination and compaction when stockpiling ensures ‘in specification’ material for any application. The radial telescopic stackers cater for a complete range of applications and industries. They offer 30% more stockpile capacity on the same footprint when stockpiling in a trapezoidal shape compared to using standard stackers.
Although the TS 842 is the largest in Denmark larger models (and smaller) are available with full extended lengths of up to 58 meters (190ft) and loading rates of up to 3,000 TPH. Other key benefits are that the mobile Radial Telescopic stackers eliminate the need for wheel loaders to build stockpiles therefore reducing labour and maintenance costs and with less site traffic movements the potential for human error is reduced. They can be fully automated also reducing labour and the stacker reduces the double handling of material.
Telestack specialise in the complete design, manufacture, installation and commissioning of mobile, bulk material handling systems.
Telestack have a global proven record in a range of applications including the coal, mining and quarry industries, stockyard management, ports & inland terminals, power stations, rail yards, steel mills, cement kilns and many other bulk material handling industries.
Our MOBILE solutions offer significant operating cost savings compared to traditional methods of material handling (wheel loaders, haul trucks, static conveyors), as well as providing Environmental, Health and Safety and other benefits. Other significant benefits include not requiring planning permission due to product mobility and flexibility to move Telestack products to work on other projects.
