HAVER & BOECKER - reaching new dimensions with the NIAGARA T-CLASS®
Münster, Germany, Juni 14, 2011 - At bauma 2007 HAVER & BOECKER introduced the prototype of the new HAVER & BOECKER T-CLASS®. This machine design has since been used continuously and developed further. Today the company looks back on a large number of satisfied customers worldwide.
HAVER & BOECKER recently introduced the NIAGARA T-CLASS® with a newly designed drive system, allowing more amplitude/rotary speed combinations than before. This in turn allows small cut sizes to be realized as well as difficult classifying jobs with large cut sizes. Further, the machine is equipped with a newly developed wear-protection system decreasing the replacement time of worn elements, thus reducing downtime.
Within the scope of the NIAGARA T-CLASS® concept, screening machines with widths starting at 2.40 meters were built in the first phase of expansion. After the introduction of a time and cost-saving modular construction system, machines with screen decks of almost twice the width (i.e. up to 4.20 m) can be built today at the plant in Münster.
A recently built 3.5-deck model D180 3000 x 7200 machine of this type was sold to German engineering and plant designer HAZEMAG in Dülmen. It separates 450 tons of limestone per hour at 25/15/8 and 4 mm. The dimensions of this screening machine are 3 m x 7.2 m, and the total screening surface amounts to 72 m. It weighs about 25,000 kg. In order to achieve the throughput and cut sizes requested by the customer, the NIAGARA T-CLASS® is equipped with two bearings and a 75 kW drive unit. The screening machine is easy to access and to maintain, as the screen deck spacing is capaciously dimensioned. This provides ideal work conditions for the operating personnel.
The screen frame of the HSG machines is engineered in a traverse design. The deck structure is clamped onto the frame with a patented retaining bracket and without welded seams. The brackets form the mounting area for the screen panel support system. Through the positioning of the brackets, spacing of the longitudinal supports can be varied. Thanks to bracket shapes with horizontal and vertical mounting areas, this concept can be applied equally well to modular as well as side- or end-tensioned screen media. At the same time, these brackets also support a newly developed wear protection system (HAVER Snap Guard) of modular structure and allowing easy replacement.
HAVER & BOECKER demonstrates readiness for the future with their NIAGARA T-CLASS®, and continues to meet their customers’ growing requirement for customized solutions.
H&B T-CLASS® Even Bigger
HAVER & BOECKER - reaching new dimensions with the NIAGARA T-CLASS®
Münster, Germany, Juni 14, 2011 - At bauma 2007 HAVER & BOECKER introduced the prototype of the new HAVER & BOECKER T-CLASS®. This machine design has since been used continuously and developed further. Today the company looks back on a large number of satisfied customers worldwide.
HAVER & BOECKER recently introduced the NIAGARA T-CLASS® with a newly designed drive system, allowing more amplitude/rotary speed combinations than before. This in turn allows small cut sizes to be realized as well as difficult classifying jobs with large cut sizes. Further, the machine is equipped with a newly developed wear-protection system decreasing the replacement time of worn elements, thus reducing downtime.
Within the scope of the NIAGARA T-CLASS® concept, screening machines with widths starting at 2.40 meters were built in the first phase of expansion. After the introduction of a time and cost-saving modular construction system, machines with screen decks of almost twice the width (i.e. up to 4.20 m) can be built today at the plant in Münster.
A recently built 3.5-deck model D180 3000 x 7200 machine of this type was sold to German engineering and plant designer HAZEMAG in Dülmen. It separates 450 tons of limestone per hour at 25/15/8 and 4 mm. The dimensions of this screening machine are 3 m x 7.2 m, and the total screening surface amounts to 72 m. It weighs about 25,000 kg. In order to achieve the throughput and cut sizes requested by the customer, the NIAGARA T-CLASS® is equipped with two bearings and a 75 kW drive unit. The screening machine is easy to access and to maintain, as the screen deck spacing is capaciously dimensioned. This provides ideal work conditions for the operating personnel.
The screen frame of the HSG machines is engineered in a traverse design. The deck structure is clamped onto the frame with a patented retaining bracket and without welded seams. The brackets form the mounting area for the screen panel support system. Through the positioning of the brackets, spacing of the longitudinal supports can be varied. Thanks to bracket shapes with horizontal and vertical mounting areas, this concept can be applied equally well to modular as well as side- or end-tensioned screen media. At the same time, these brackets also support a newly developed wear protection system (HAVER Snap Guard) of modular structure and allowing easy replacement.
HAVER & BOECKER demonstrates readiness for the future with their NIAGARA T-CLASS®, and continues to meet their customers’ growing requirement for customized solutions.
Weitere Informationen:
https://edir.bulk-online.com/oldedir...ter-206045.htmhaver boecker ohg maschinenfabrik muenster 206045.htm
https://edir.bulk-online.com/profile...inenfabrik.htm2063 haver boecker maschinenfabrik.htm
Google Search:
http://www.google.de/search?client=s...Gs7FswbgpuCKCQsearch?client=safari&rls=en&q=haver+boecker+site:bulk online.com&ie=UTF 8&oe=UTF 8&rediresc=&ei=BGT4TffKGs7FswbgpuCKCQ
Photo:

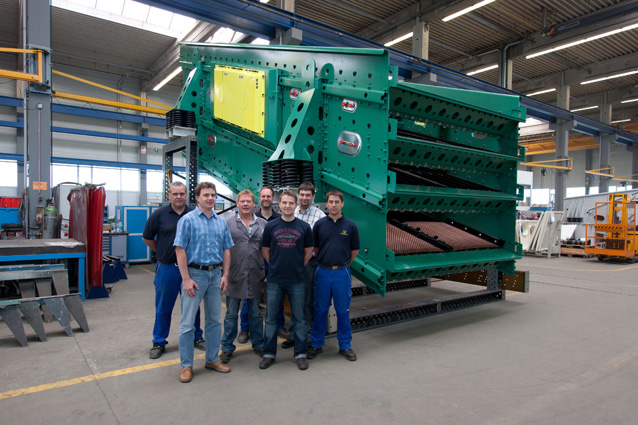

The HAVER & BOECKER team with a NIAGARA T-Class® screening machine built at the plant in Muenster, Germany.
