When the Barro Group required a mobile crushing solution for its Mountain View quarry they spoke with Sandvik, the world’s leader in mobile crushers and screens.

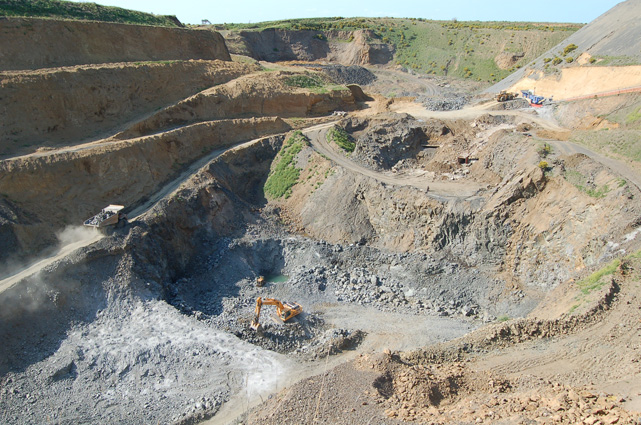

Mountain View quarry is situated near Drysdale on the picturesque and historic Bellarine peninsula east of Geelong, Victoria and has been mined for its high grade basalt for the past 25 years. The basalt has a density of 2.9 g/cm and is an ideal aggregate for the production of the Barro Group’s premium premixed concrete. It was estimated that the basalt would run out in two to three years and in order to extract it cost effectively from the base of the deep quarry a proven mobile crushing solution was required. The critical issue was the ability to easily move the crushing unit in line with the blasting and extraction operations and, of course, remove it at the end of the quarry’s life to another quarry to continue its operation and return on investment.
The Sandvik QJ 330 (formerly Fintec F1107) mobile Jaw Crusher was selected by the Barro Group’s management team in consultation with Precisionscreen, the exclusive agent for Sandvik mobile crushers and screens in Australia. The unit was originally designed jointly by Fintec and Sandvik Rock Processing and utilises the very latest technology, including finite element techniques to minimise stress levels within the frame itself.
The high crushing speed of the Sandvik QJ330, together with its large feed opening, provides impressive rates of production and superb reduction ratios. According to Rob Micallef, Mountain View Quarries on-site manager, “it produces 140 tonnes / hour which is indeed impressive given the density of the local basalt.”
The tracked Sandvik QJ330 is specifically constructed for high mobility. The feed hopper has hydraulically foldable sides for easy transport and quick set up on site. In fact, Rob was quick to point out that it took just one hour to set the unit up on its current site in the quarry and that its mobility was also advantageous for maintenance and general house-keeping at this site.
The chassis facilitates easy inspection and access to maintenance points. Platforms around the diesel power pack provide access for inspection and service. A rotating warning beacon and siren provide visual and auditable warnings of movement.
From an operational point of view, Rob has been impressed with the Sandvik QJ330 on a range of other attributes including:
•Reliable start up
•Quick and easy hydraulic settings that hold
•Manual versus automatic option
•Reverse crushing action to relieve blockages
•Hydraulic legs for increased stability
•Automatic central lubrication system to increase productive up-time
Sandvik has applied all its experience gained over the past 100 years in crushing to produce this modern and efficient crusher which is ideally suited to the Barro Group’s application at its Mountain View quarry near Drysdale. Out of interest, the Barro Group was founded by Italian born Dave Barro in 1946 and has successfully expanded and diversified to become Australia’s largest privately owned quarrying, concrete and services group.
The operation of the Sandvik QJ330 on-site is also backed up with training, technical and on-going service support from the experienced and professional team at Precisionscreen.
The recent unification of the Fintec and Extec brands into the Sandvik group of companies has created the world’s largest, most comprehensive and dynamic line-up of mobile crushing and screening equipment in the world.
Sandvik is a global industrial group with advanced products and world-leading positions in selected areas – tools for metal cutting, machinery and tools for rock excavation, stainless materials, special alloys, metallic and ceramic resistance materials as well as process systems. The Group had at the end of 2008 about 50,000 employees and representation in 130 countries, with annual sales of more than SEK 93,000 M.
Sandvik Mining and Construction is a business area within the Sandvik Group and a leading global supplier of machinery, cemented-carbide tools, service and technical solutions for the excavation and sizing of rock and minerals in the mining and construction industries. Annual sales 2008 amounted to about SEK 38,700 M, with approximately 16,800 employees.
Barro’s New Mover & Crusher
Barro’s New Mover & Crusher
When the Barro Group required a mobile crushing solution for its Mountain View quarry they spoke with Sandvik, the world’s leader in mobile crushers and screens.
Mountain View quarry is situated near Drysdale on the picturesque and historic Bellarine peninsula east of Geelong, Victoria and has been mined for its high grade basalt for the past 25 years. The basalt has a density of 2.9 g/cm and is an ideal aggregate for the production of the Barro Group’s premium premixed concrete. It was estimated that the basalt would run out in two to three years and in order to extract it cost effectively from the base of the deep quarry a proven mobile crushing solution was required. The critical issue was the ability to easily move the crushing unit in line with the blasting and extraction operations and, of course, remove it at the end of the quarry’s life to another quarry to continue its operation and return on investment.
The Sandvik QJ 330 (formerly Fintec F1107) mobile Jaw Crusher was selected by the Barro Group’s management team in consultation with Precisionscreen, the exclusive agent for Sandvik mobile crushers and screens in Australia. The unit was originally designed jointly by Fintec and Sandvik Rock Processing and utilises the very latest technology, including finite element techniques to minimise stress levels within the frame itself.
The high crushing speed of the Sandvik QJ330, together with its large feed opening, provides impressive rates of production and superb reduction ratios. According to Rob Micallef, Mountain View Quarries on-site manager, “it produces 140 tonnes / hour which is indeed impressive given the density of the local basalt.”
The tracked Sandvik QJ330 is specifically constructed for high mobility. The feed hopper has hydraulically foldable sides for easy transport and quick set up on site. In fact, Rob was quick to point out that it took just one hour to set the unit up on its current site in the quarry and that its mobility was also advantageous for maintenance and general house-keeping at this site.

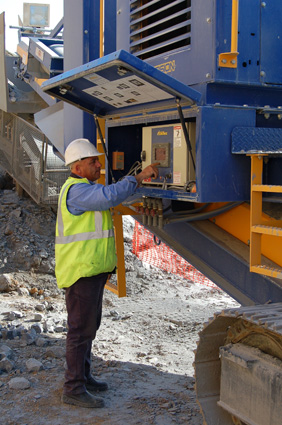

The chassis facilitates easy inspection and access to maintenance points. Platforms around the diesel power pack provide access for inspection and service. A rotating warning beacon and siren provide visual and auditable warnings of movement.
From an operational point of view, Rob has been impressed with the Sandvik QJ330 on a range of other attributes including:
•Reliable start up
•Quick and easy hydraulic settings that hold
•Manual versus automatic option
•Reverse crushing action to relieve blockages
•Hydraulic legs for increased stability
•Automatic central lubrication system to increase productive up-time
•Good fuel efficiency (250 litres / 9 hours crushing)
Sandvik has applied all its experience gained over the past 100 years in crushing to produce this modern and efficient crusher which is ideally suited to the Barro Group’s application at its Mountain View quarry near Drysdale. Out of interest, the Barro Group was founded by Italian born Dave Barro in 1946 and has successfully expanded and diversified to become Australia’s largest privately owned quarrying, concrete and services group.
The operation of the Sandvik QJ330 on-site is also backed up with training, technical and on-going service support from the experienced and professional team at Precisionscreen.
The recent unification of the Fintec and Extec brands into the Sandvik group of companies has created the world’s largest, most comprehensive and dynamic line-up of mobile crushing and screening equipment in the world.
Sandvik is a global industrial group with advanced products and world-leading positions in selected areas – tools for metal cutting, machinery and tools for rock excavation, stainless materials, special alloys, metallic and ceramic resistance materials as well as process systems. The Group had at the end of 2008 about 50,000 employees and representation in 130 countries, with annual sales of more than SEK 93,000 M.
Sandvik Mining and Construction is a business area within the Sandvik Group and a leading global supplier of machinery, cemented-carbide tools, service and technical solutions for the excavation and sizing of rock and minerals in the mining and construction industries. Annual sales 2008 amounted to about SEK 38,700 M, with approximately 16,800 employees.
