Dust free container filling for powder with The SiloadmaxX®
How it works
Filling containers with the SiloadmaxX® mobile system is based on the pneumatic conveying concept. The dry powder bulk material is conveyed through a telescopic pipe in a SiloadmaxX® liner bag fitted into the receiving container. The conveying air and the dust particles are returned into a filter receiver through the gap between the outer telescopic pipe and the inner conveying pipe. A rotary valve under the filter discharges the dust back into the conveying cycle by means of a bypass device. The conveying process operates in a closed loop mode and prevents the release of dust into the environment. For unloading of silos, the conveying air for the system is supplied by a blower that is integrated into the SiloadmaxX® unit. In case of truck unloading, the truck compressor can be used for conveying.
The advantages of the SiloadmaxX® system
•Elimination of intermediate packaging steps such as bag or big bag filling, that may result in reduced packing time up to 75%
•New logistic concept for producers of bulk materials
•Makes international shipping and receiving cost effective
•Fast loading and unloading of containers, up to 50,000lbs in 25 minutes.
•Use of ISO containers reduces transportation costs compared to truck or rail car transportation
•Utilization of empty ISO containers, no special containers necessary.
•Use of containers as storage units.
•Closed loop conveying system prevents the release of dust into the environment
•The CQF container unloading system is the efficient solution in combination with the SiloadmaxX®
•Mobile, solid and proofed technology for heavy industrial use
The SiloadmaxX® unloading system CQF
The container unloading system ContainerQickFlows (CQF) is designed for handling of sticky and powdery bulk solids, without releasing dust to the environment. With the aid of a fork lift, the CQF unit will be connected to the container. After the container is moved into a tilted position, the dry bulk solids flow through a wide opening in the liner into a screw feeder. The material will be conveyed with the aid of an integrated blow through rotary feeder and compressed air into the destination silo. The CQF is available to fit various containers. In case of bridging material, the use of a bulk shock unit is recommended.
(double click on picture to open in new window)

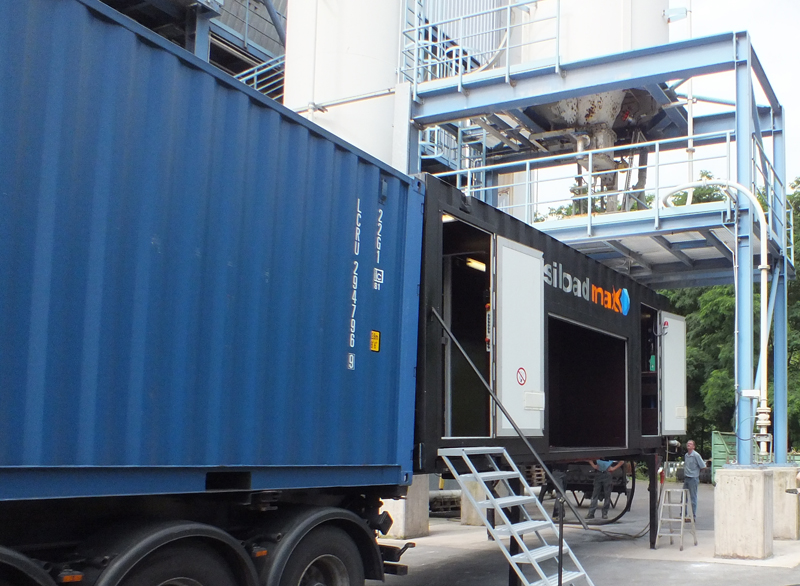

Pelletron SiloadmaxX in container loading position under a silo
(double click on picture to open in new window)

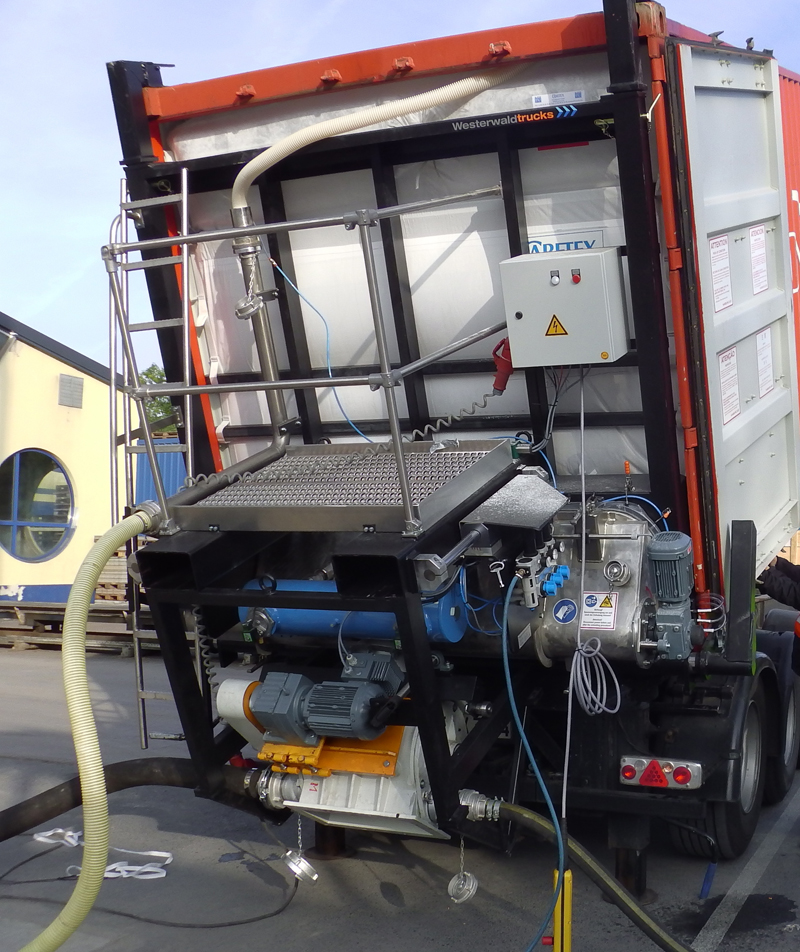

Pelletron SiloadmaxX CQF powder unloading system installed
Dust-free Container Filling: SiloadmaxX
Dust free container filling for powder with The SiloadmaxX®
How it works
Filling containers with the SiloadmaxX® mobile system is based on the pneumatic conveying concept. The dry powder bulk material is conveyed through a telescopic pipe in a SiloadmaxX® liner bag fitted into the receiving container. The conveying air and the dust particles are returned into a filter receiver through the gap between the outer telescopic pipe and the inner conveying pipe. A rotary valve under the filter discharges the dust back into the conveying cycle by means of a bypass device. The conveying process operates in a closed loop mode and prevents the release of dust into the environment. For unloading of silos, the conveying air for the system is supplied by a blower that is integrated into the SiloadmaxX® unit. In case of truck unloading, the truck compressor can be used for conveying.
The advantages of the SiloadmaxX® system
•Elimination of intermediate packaging steps such as bag or big bag filling, that may result in reduced packing time up to 75%
•New logistic concept for producers of bulk materials
•Makes international shipping and receiving cost effective
•Fast loading and unloading of containers, up to 50,000lbs in 25 minutes.
•Use of ISO containers reduces transportation costs compared to truck or rail car transportation
•Utilization of empty ISO containers, no special containers necessary.
•Use of containers as storage units.
•Closed loop conveying system prevents the release of dust into the environment
•The CQF container unloading system is the efficient solution in combination with the SiloadmaxX®
•Mobile, solid and proofed technology for heavy industrial use
The SiloadmaxX® unloading system CQF
The container unloading system ContainerQickFlows (CQF) is designed for handling of sticky and powdery bulk solids, without releasing dust to the environment. With the aid of a fork lift, the CQF unit will be connected to the container. After the container is moved into a tilted position, the dry bulk solids flow through a wide opening in the liner into a screw feeder. The material will be conveyed with the aid of an integrated blow through rotary feeder and compressed air into the destination silo. The CQF is available to fit various containers. In case of bridging material, the use of a bulk shock unit is recommended.
(double click on picture to open in new window)
Pelletron SiloadmaxX in container loading position under a silo
(double click on picture to open in new window)
Pelletron SiloadmaxX CQF powder unloading system installed
More details on the SiloadmaxX® mobile system will be showcased at The Chicago Powder Showshowthread.php?26622 The Chicago Powder Show 2014 in May 2014.
