Martin Engineering updates industry-standard sealing system

New MARTIN® Double APRON SEAL™ Skirting

combines effective dual seal with double wear life

(Neponset, IL)—An improved version of Martin Engineering’s industry-leading APRON SEAL™ Skirtboard Sealing system now provides double the wear life.

New MARTIN® Double APRON SEAL™ Skirting provides two wear surfaces on a single elastomer sealing strip installed along the bottom of the skirtboard in a belt conveyor loading zone. When bottom side of the strip against the belt is worn, the sealing strip is inverted, providing a second service life.

Skirtboard sealing systems are installed on the sides of belt conveyor loading zones to contain material, eliminate spillage, and reduce cleanup expenses. MARTIN® APRON SEAL™ Skirting was the first dual-sealing system, as it incorporates a primary seal clamped to the steel skirtboard to keep lumps on the belt and a secondary or “outrigger” strip to capture any fines or dust that passes beneath the primary seal. The secondary seal lies gently on the belt and self-adjusts to maintain consistent strip-to-belt pressure despite high-speed material movement and fluctuations in the belt’s line of travel.

New Double APRON SEAL™ Skirting is available in lengths up to 300 feet (91 meters) to provide a continuous seal without seams that leak fugitive material. MARTIN® Double APRON SEAL™ Strips can be installed--using the existing clamps-as a replacement for previous APRON SEAL™ Skirting Systems or many other skirtboard sealing systems.

New Double APRON SEAL™ is one of the first products to be introduced as part of Martin Engineering’s New Architecture for Modern Conveying.

For more information about new Double APRON SEAL™ Skirting, contact your Martin Engineering representative or visit

Founded in 1944, Martin Engineering is the world leader in making bulk materials handling cleaner, safer, and more productive. Headquartered in Neponset, Illinois, Martin Engineering reaches around the world with operations in Brazil, China, France, Germany, Indonesia, Mexico, South Africa, Turkey, and United Kingdom. MARTIN® Products are available from business units and authorized representatives around the world.

For more information, please visit:

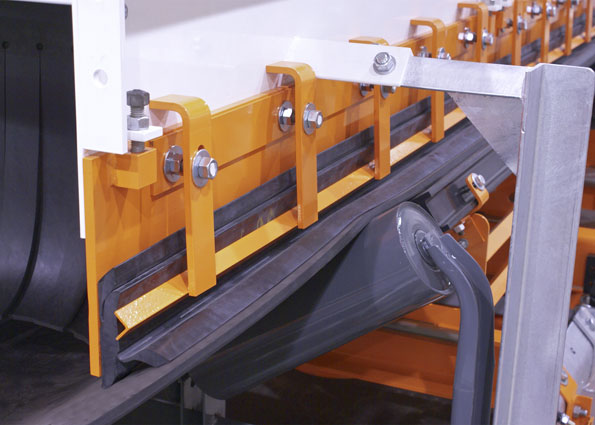

Fig. 1: Installed on the outside of a belt conveyor loading zone,

new Double APRON SEAL™ Skirting from Martin Engineering

provides an effective seal with double the wear life.

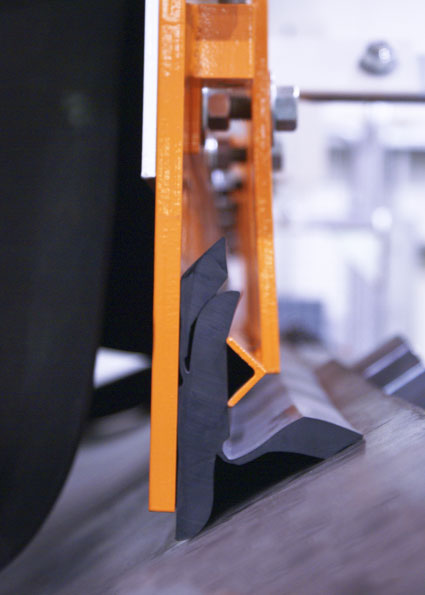

Fig. 2: Invert the sealing strip to receive a second wear life from

new Double APRON SEAL™ Skirting from Martin Engineering.
