Features: Internal diverter chute and outlet wear liners are constructed of abrasion resistant plate (400 BNH) to address material abrasiveness. Front access panel allows any maintenance to be performed without removing diverter from place.
Details: In this case, the Vortex pivoting chute diverter is being used as a “splitter” diverter – allowing material to flow from one source to two destinations at the same time.
VORTEX - Pivoting Chute Handling Silica Sand

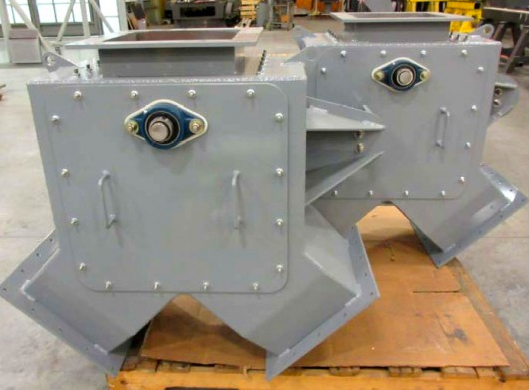

Pivoting Chute Handling Silica Sand
Location: Rail Loading Station – Wisconsin
Material: Silica Sand
Application: Loading silica sand into railcars
Features: Internal diverter chute and outlet wear liners are constructed of abrasion resistant plate (400 BNH) to address material abrasiveness. Front access panel allows any maintenance to be performed without removing diverter from place.
Details: In this case, the Vortex pivoting chute diverter is being used as a “splitter” diverter – allowing material to flow from one source to two destinations at the same time.

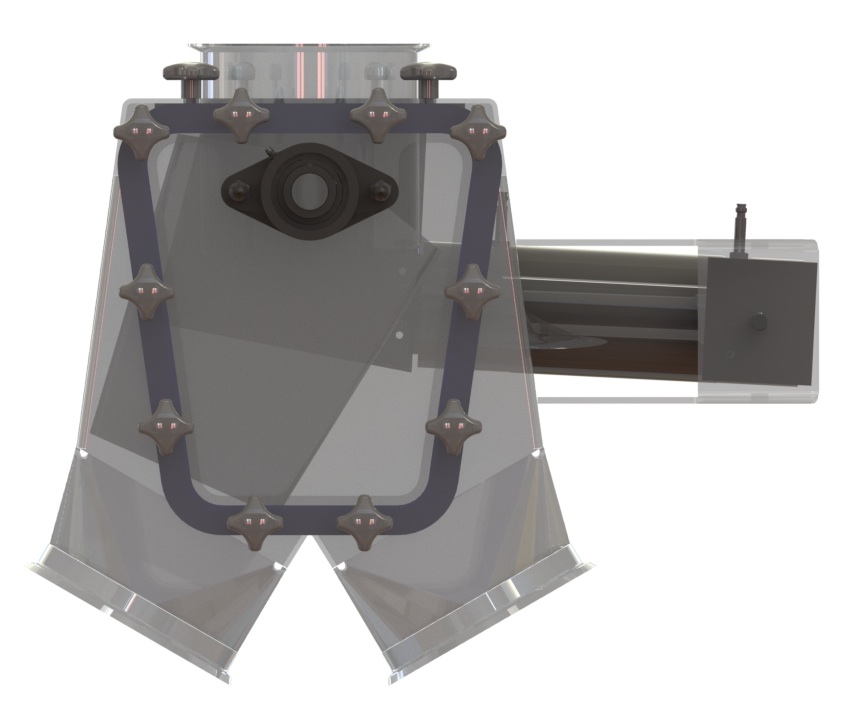

Internals of a Pivoting Chute Diverter
