RHEWUM Screens Broken Glas

Posted in: , on 19. Jun. 2011 - 14:03


Specific feature of the RHEWUM Magnetic Screen is the very fine screen cut specified by Colorobbia S.p.A..

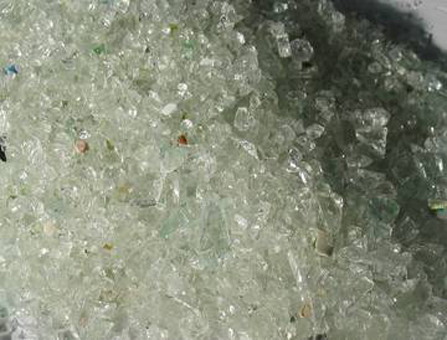

A crushed glass mixture of 0.08 mm up to 3.0 mm has to be screened to two fractions of 80 µm to 150 µm and 150 µm to 300 µm. Accepted amount of outsize particles of each fraction is max. 3% at a capacity of 20 t/h.

Several trials have shown that these exact screening can only be done by use of a screening machine with electromagnetic drives type RHEWUM WA. In this project a screening machine type WA 175x269/3 with the new developed directly screwed DWA magnetic heads was chosen. They are controlled by the also new developed control functional block type WA4 which reduces sound emission by the principle of counter sound. To reduce wear all parts of the machine which are in contact with the product are equipped with wear protection.

The design of the plant was made by Gruppo Minerali and delivery and assembling was done by company La Toscana Impianti. Especially Minerali Industriali and its subsidiary Sasil has profound experience in the field of glass processing.

Colorobbia Italia S.p.A.

With more than 2.000 employees one of the leading producers of ceramics who produces a wide scope of materials for the ceramic, glass and metal industry. Besides pigments and glass coatings they produce lead oxide for ceramic tiles, tableware, colours and batteries.

La Toscana Impianti

Founded in 1960 as La Toscana the company established itself as an innovative partner in the chemical and the petrochemical industry, in paper industry, pharmacy and last but not least the ceramics industry. Customers are e.g. ENI Group, Bussi, Technip, Techint, DOW Italia, Rhodia Italia, Solvay Chimica Italia S.p.A., Ansaldo Energia, Agip Petrolia, Marangoni Impianti, Sudprogetti S.r.l. etc

Minerali Industriali S.p.A.

Is part of the Gruppo Minerali, a merger of Minerali Industriali, Maffei Sarda Silicati, Minerali Industriali Tunisia and Egyptian International Industrial Minerals. Main products are basic materials for glass industry. From its own production processes Minerali Industriali meanwhile has more then 20 years experience in the processing of glass secondary raw materials.
