PREMAFLEX pinch valves – the easiest and safest solution for shut-off fittings
PREMA-SERVICE can look back on more than 50 years experience in the field of plant engineering. A German company managed by its owner and operating its own engineering and production facilities in Bad Homburg v.d.H. near Frankfurt am Main, PREMA-SERVICE stands for high quality, complete reliability and first-rate service with fast response times.
Compared to other shut-off fittings, PREMAFLEX pinch valves ensure a smooth product flow since the flow is not inhibited. With PREMAFLEX pinch valves there is no clogging, only low surface resistance and easy maintenance, the valves are reasonably priced and instantly available – to mention only of few of their benefits. Its simple design makes the PREMAFLEX pinch valve a very economical solution if you need a shut-off device. No additional drive but only a 3/2-way solenoid valve is required to select and activate the pinch valves.
(click on picture to expand)

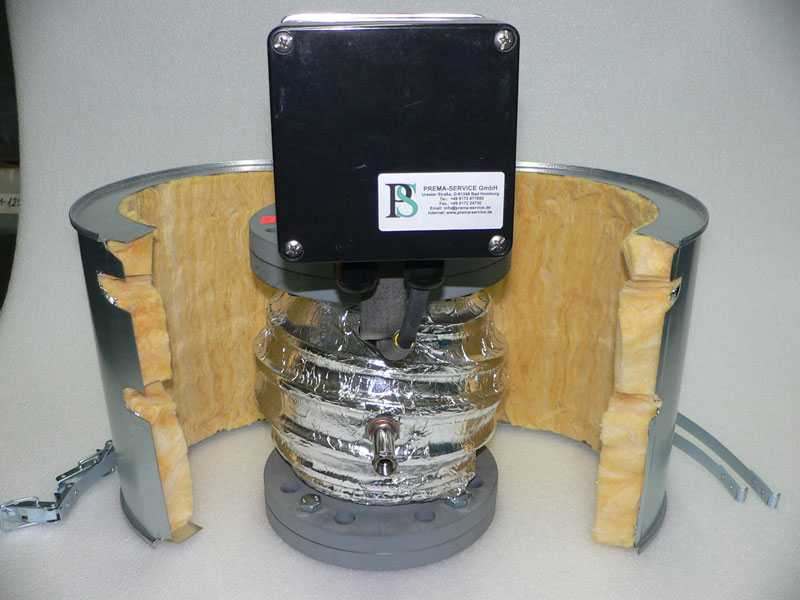

PREMAFLEX pinch valve in heated construction
In idle condition, PREMAFLEX pinch valves allow the full nominal diameter (DN15 – DN 200) to be used. When pressure is applied via the control air supply, the built-in rubber sleeve is pressed together like lips and safely shuts off the product flow. When control air supply is cut off, the valve opens again to its full diameter due to the rebound elasticity of the sleeve. With our range of different sleeve grades, PREMA-SERVICE can serve nearly all applications. Detailed mounting instructions enable the customer to quickly replace the rubber sleeve at the site with no unnecessary service costs incurred.
(click on picture to expand)
Special design PREMAFLEX pinch valves

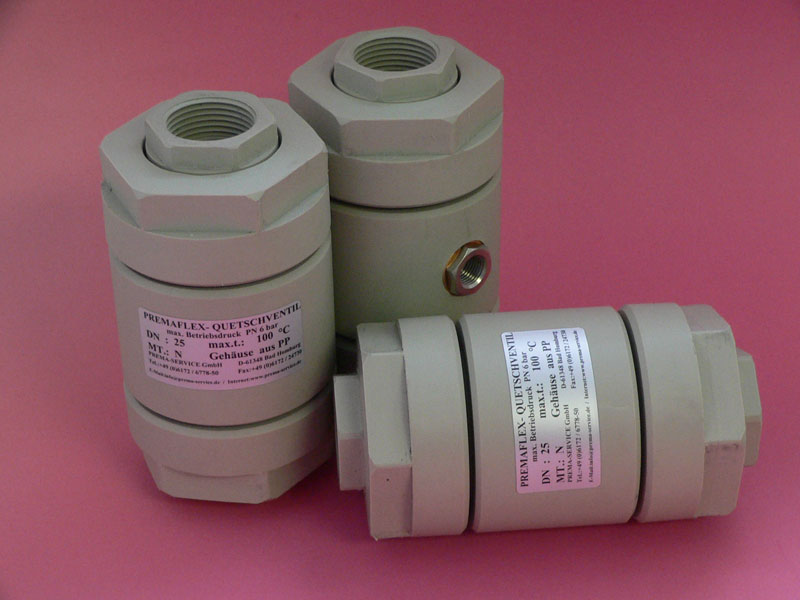

Pinch valves, or hose valves as they are sometimes called, are one of our core fields of business. PREMA-SERVICE offers a wide range of them in various designs including for example
Pinch valves with flange connection (DN40 to DN200)
Pinch valves made of POM or PP (DN15 to DN50)
Rubber sleeves for pinch valves in four different elastomer grades
PREMA-SERVICE offers its customers
Quality
•We have extensive specialist expertise in engineering and design
•We produce key components at our own production facilities or those of selected partners in Germany and Europe
Reliability
•Extensive quality assurance and certification is a matter of course for us
•Long years of experience and a committed staff guarantee highest reliability
Service
•Detailed mounting instructions enable quick replacement of the rubber sleeve
•Large spare parts stores ensure fast response times
•We implement individual customer wishes and requirements
•We provide special varnishes – even for underwater use
PREMAFLEX pinch valves
PREMAFLEX pinch valves – the easiest and safest solution for shut-off fittings
PREMA-SERVICE can look back on more than 50 years experience in the field of plant engineering. A German company managed by its owner and operating its own engineering and production facilities in Bad Homburg v.d.H. near Frankfurt am Main, PREMA-SERVICE stands for high quality, complete reliability and first-rate service with fast response times.
(click on picture to expand)
PREMAFLEX pinch valves
PREMAFLEX pinch valvessearch?q=pinch+valves&client=firefox a&hs=nmv&rls=org.mozilla:de:official&channel=sb&tbm=isch&tbo=u&source=univ&sa=X&ei=pJJHVMTPN L9ygPA5oL4Dw&ved=0CC4QsAQ&biw=1377&bih=1221 are used for pneumatic conveyance of bulk materials of all types, in the food and pharmaceutical industry, plastic and chemical industry, wastewater treatment, plant engineering, paper and pulp industry, cement industry as well as in structural engineering and mining. PREMAFLEX pinch valves easily shut off all kinds of media, such as sand, cement, water, granulates, powders, wood chips and many more.
(click on picture to expand)

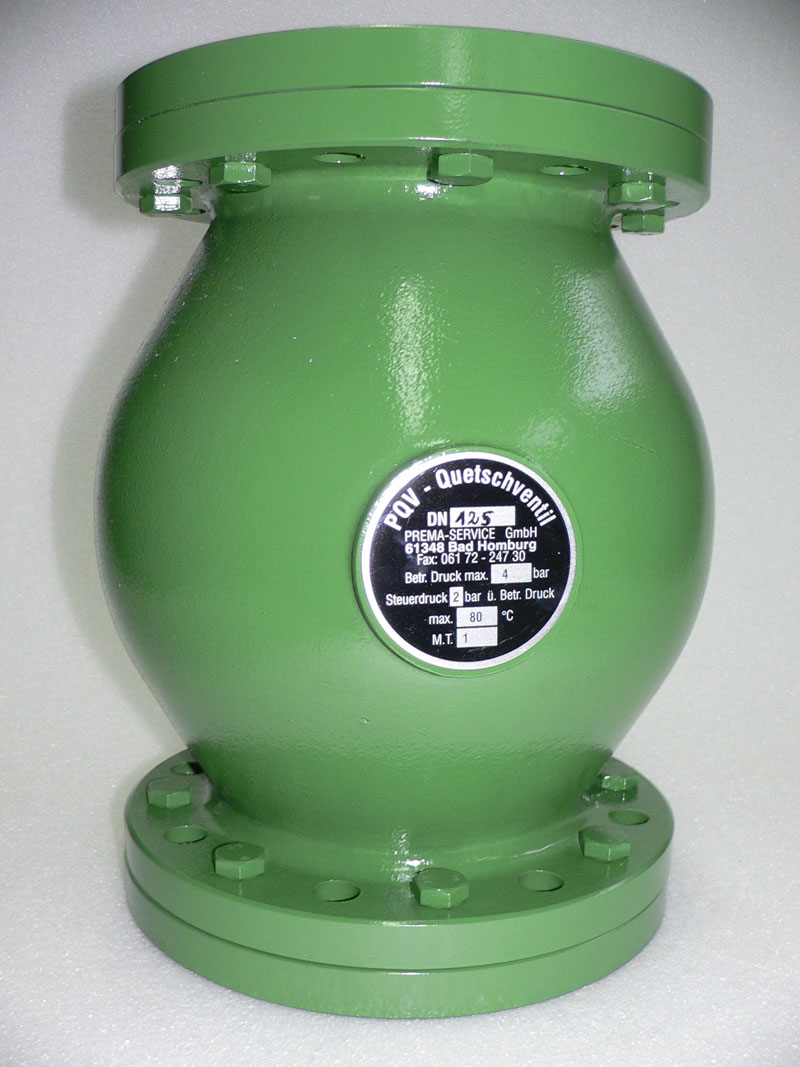

PQV- pinch valve
Compared to other shut-off fittings, PREMAFLEX pinch valves ensure a smooth product flow since the flow is not inhibited. With PREMAFLEX pinch valves there is no clogging, only low surface resistance and easy maintenance, the valves are reasonably priced and instantly available – to mention only of few of their benefits. Its simple design makes the PREMAFLEX pinch valve a very economical solution if you need a shut-off device. No additional drive but only a 3/2-way solenoid valve is required to select and activate the pinch valves.
(click on picture to expand)
PREMAFLEX pinch valve in heated construction
In idle condition, PREMAFLEX pinch valves allow the full nominal diameter (DN15 – DN 200) to be used. When pressure is applied via the control air supply, the built-in rubber sleeve is pressed together like lips and safely shuts off the product flow. When control air supply is cut off, the valve opens again to its full diameter due to the rebound elasticity of the sleeve. With our range of different sleeve grades, PREMA-SERVICE can serve nearly all applications. Detailed mounting instructions enable the customer to quickly replace the rubber sleeve at the site with no unnecessary service costs incurred.
(click on picture to expand)

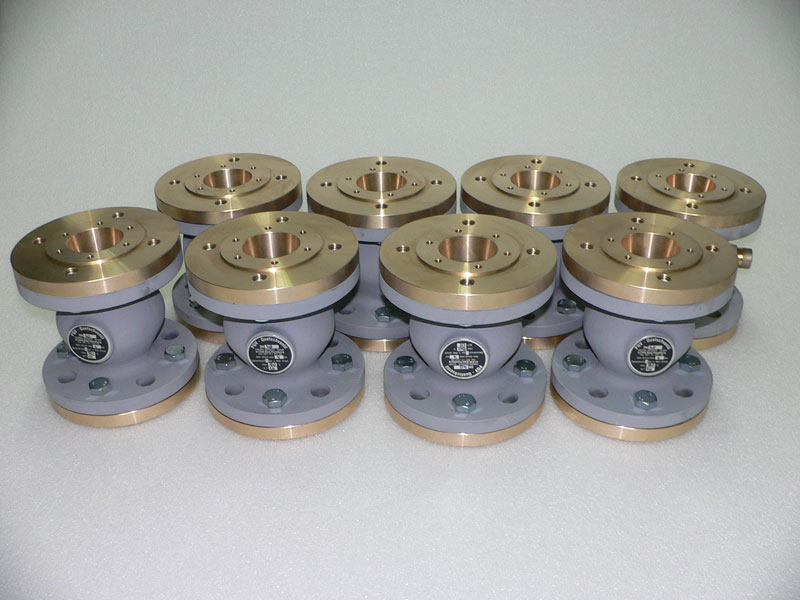

Special design PREMAFLEX pinch valves
Pinch valves, or hose valves as they are sometimes called, are one of our core fields of business. PREMA-SERVICE offers a wide range of them in various designs including for example
Pinch valves with flange connection (DN40 to DN200)
Pinch valves made of POM or PP (DN15 to DN50)
Rubber sleeves for pinch valves in four different elastomer grades
PREMA-SERVICE offers its customers
Quality
•We have extensive specialist expertise in engineering and design
•We produce key components at our own production facilities or those of selected partners in Germany and Europe
Reliability
•Extensive quality assurance and certification is a matter of course for us
•Long years of experience and a committed staff guarantee highest reliability
Service
•Detailed mounting instructions enable quick replacement of the rubber sleeve
•Large spare parts stores ensure fast response times
•We implement individual customer wishes and requirements
•We provide special varnishes – even for underwater use
