Elburn, IL. — Monitor Technologies line of tilt switches provide cost effective solutions for the high level detection of bulk solids. Tilt switches are used to prevent overflow of solids from storage bins, or control solids levels in open piles. Tilt switches can even be used to prevent under loading or over loading of solids on conveyor belts.
Typically, the unit is suspended above the material being detected. Rising material makes contact with the switch enclosure, causing it to tilt. When the body is tilted by more than 17o, an internal switch is deactivated, providing indication of high material level. The unit has only one moving part. It requires no calibration or power, and minimal maintenance.

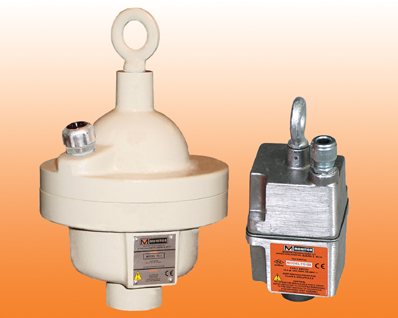

The light duty model TC-3X is constructed from cast aluminum and is suited for moderately sized solids having a density of 15-60 lb/ft3 (240-960 kg/m3). It can be used in hazardous area locations. The heavy duty model TC-1 is made from cast iron. It is ideal for heavy, coarse solids having a density greater than 45 lb/ft3 (720 kg/m3).
Monitor Technologies
Hands Free Tilt Switch For You
Elburn, IL. — Monitor Technologies line of tilt switches provide cost effective solutions for the high level detection of bulk solids. Tilt switches are used to prevent overflow of solids from storage bins, or control solids levels in open piles. Tilt switches can even be used to prevent under loading or over loading of solids on conveyor belts.
Typically, the unit is suspended above the material being detected. Rising material makes contact with the switch enclosure, causing it to tilt. When the body is tilted by more than 17o, an internal switch is deactivated, providing indication of high material level. The unit has only one moving part. It requires no calibration or power, and minimal maintenance.
The light duty model TC-3X is constructed from cast aluminum and is suited for moderately sized solids having a density of 15-60 lb/ft3 (240-960 kg/m3). It can be used in hazardous area locations. The heavy duty model TC-1 is made from cast iron. It is ideal for heavy, coarse solids having a density greater than 45 lb/ft3 (720 kg/m3).
