Template sample equipment for static belt cut

Posted in: , on 25. Oct. 2016 - 01:52

First I apologise for using this method, but in the circumstances and time available there seems no better method to obtain a full cross cut from a belt.

I am fully aware of the limitations.

In future we hope to add some automated systems.

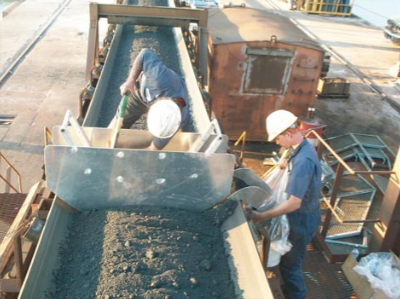

Does anyone know of a supplier of the templates shown in the attached image.

If not I will get some made.

Attachments

cross cut sampler (PNG)

■

Replies
Login to add a Reply

Re: Template Sample Equipment For Static Belt Cut

Posted on 25. Oct. 2016 - 04:41

Hi Steve

Given the various cross cut profiles due the many idler manufacturers I highly doubt you would find an off-the-shelf manual sampler. You would be best to make your own.

We made one for every belt in the underground mill at the mine when we did a mass balance study there.

Good luck. ■

Gary Blenkhorn
President - Bulk Handlng Technology Inc.
Email: garyblenkhorn@gmail.com
Linkedin Profile: http://www.linkedin.com/in/gary-blenkhorn-6286954b
Offering Conveyor Design Services, Conveyor Transfer Design Services and SolidWorks Design Services for equipment layouts.

Template

Posted on 25. Oct. 2016 - 10:28

Thanks Gary,

I expected to need to make some, as I have done this before many years ago.

It would have made life easier to buy.

Perhaps there is an opening for someone.

Cheers Steve ■
