Back To The Raj.
Four hundred tonnes per hour of a toxic powder requires more than one operator and the vendors will need much more information than given above. Could YOU lift a 50kg bag accurately and continuously within 4.5 seconds.
You need to prepare a proper enquiry which should include the MSDS, the delivery method, preferred bag disposal method etc. etc. In the developed world such a throughput enters the realms of vacuum sack placement and such a machine is likely to overshadow your poxy little slitter whatever operator protection you specify.
A frivolous question:how do you get a 280mm lump into a 200mm bag? Better tell a potential competent vendor everything. ■
John Gateley johngateley@hotmail.com www.the-credible-bulk.com
Requirement of Bag Slitting Machine for Bags Containing Large Lumps of Lime
Hello Forum,
We require Bag Slitting machine conforming to following specifications:
1. Type of machine : Automatic Sack Slitter
2. Material to be handled : Filled bags with loose lime lumps with average particle
size of 150mm and occasionally 280mm and accordingly
hard. Sometimes not fully burnt lime.
3. Bulk density : 650 Kg/M
4. Weighment Size : 50 Kgs
5. Bag Size : 800 to 1000 mm Length
500 to 700mm Width
200 to 350mm Height
6. Output : Upto 800 bags of 50 Kgs per hour depending upon operator
placing the bags at the same rate
7. Bag material : HDPE (optionally single / double lined paper / plastic /
PE Lined)
8.Material of construction : Contact parts SS304 and others carbon steel
9. Power supply required : 415V AC + 6%, 3 Phase, 50Hz+3% with Earth & Neutral
Crusher will be provided below the slitting machine.
Kindly suggest suppliers (Indian/International) for Bag slitting machine conforming to above specifications.
Installation shall be in India.
Regards,
Arun Bablad

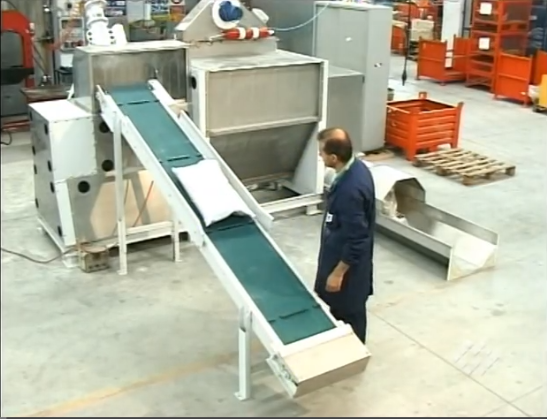

Contact: Bag slitting and emptying equipment watch?x yt ts=1421914688&x yt cl=84503534&v=gxNb0Vq3ffk
