Blower Inlet Position

Posted in: , on 15. Aug. 2011 - 08:42

any body can help me ,

for Pulse jet bag house what is a best position in blower inlet line.

1. Upper side of bag house (below venturi arrangement

2. top side of venturi arrnagement

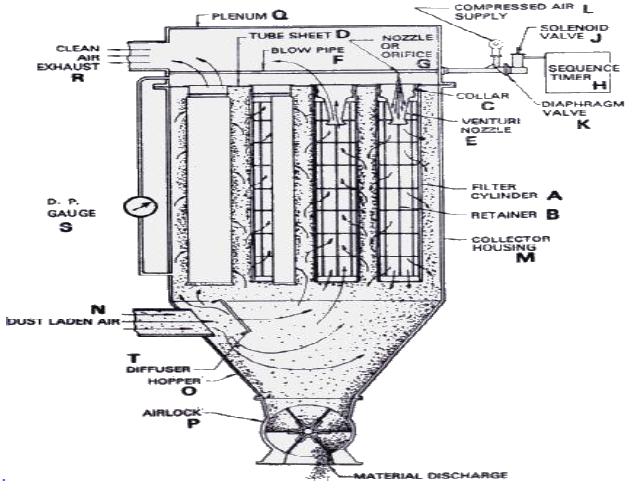

I attched 2 drawings , please recomend

draw 1

Click image for larger version. Name:draw 2.jpg Views:371 Size:53.0 KB ID:29197 best drawings ?

draw 1

Click image for larger version. Name:draw 2.jpg Views:371 Size:53.0 KB ID:29197 ■

uditha
Bags
Bags, Sacks & FIBCs
Bag & Container Storage
Storage
Compressors (Blowers)
Compressed Air Systems
Baghouses Dust Collectors
Dust Collection Systems
Dust Control
Environmental Control Equipment
Safety & Environment
Replies
Login to add a Reply

Re: Blower Inlet Position

Posted on 15. Aug. 2011 - 11:43

Dear


for Pulse jet bag house what is a best position in blower inlet line.

1.Upper side of bag house (below venturi arrangement)

In this arrangement, the filter bags are bypassed.

There is no airflow through the filter bags and the dust laden air is directly exhausted through the fan into the atmosphere.


2.top side of venturi arrangement

In this arrangement, the filter bags are filtering the passing, dust laden, air.

There is an airflow through the filter bags and the cleaned air is exhausted through the fan into the atmosphere.

Couldn’t you figure this out by yourself?

Success

Teus ■

Teus

Re: Blower Inlet Position

Posted on 15. Aug. 2011 - 01:03

Thanks Mr. Teus,

this is I will taken by indian web site , they are supplying bag filters . they mention figure 1 , but I am not sure are they experts on the topic

what is your recommendation , do you have clear schematic diagram for this ?

I hope to your favorable reply

Thanks

uditha ■

uditha
