You could always spray it with water allowing the water to convert to steam. ■

Since you are already using a screw conveyor and depending on the length of it you could install a water jacket onto the outside and run cold water through the jacket in the reverse flow of the hot material.

We used to cool salt coming out of our dryers that way in the evaporator plants and it was very effective. But it was not as hot as what you are describing.

Attachments

case study - cooling conveyor (PDF)

■

Originally Posted by technology

href="showthread.php?p=64993#post64993" rel="nofollow">

Hello,

we need a cooling system to cool down bulk material from 400C to 100C.

Material flow through screw conveyor is 35 ton/hr. bulk dencity is 800 to 1000 kg/m3.

thanks for your cooperation.

href="mailto:jame.mech@yahoo.com">jame.mech@yahoo.com

Consider using a vibrating fluid bed cooler. Complete the attached enquiry questionnaire where possible and return it to

href="mailto:gloverd@btconnect.com">gloverd@btconnect.com

Attachments

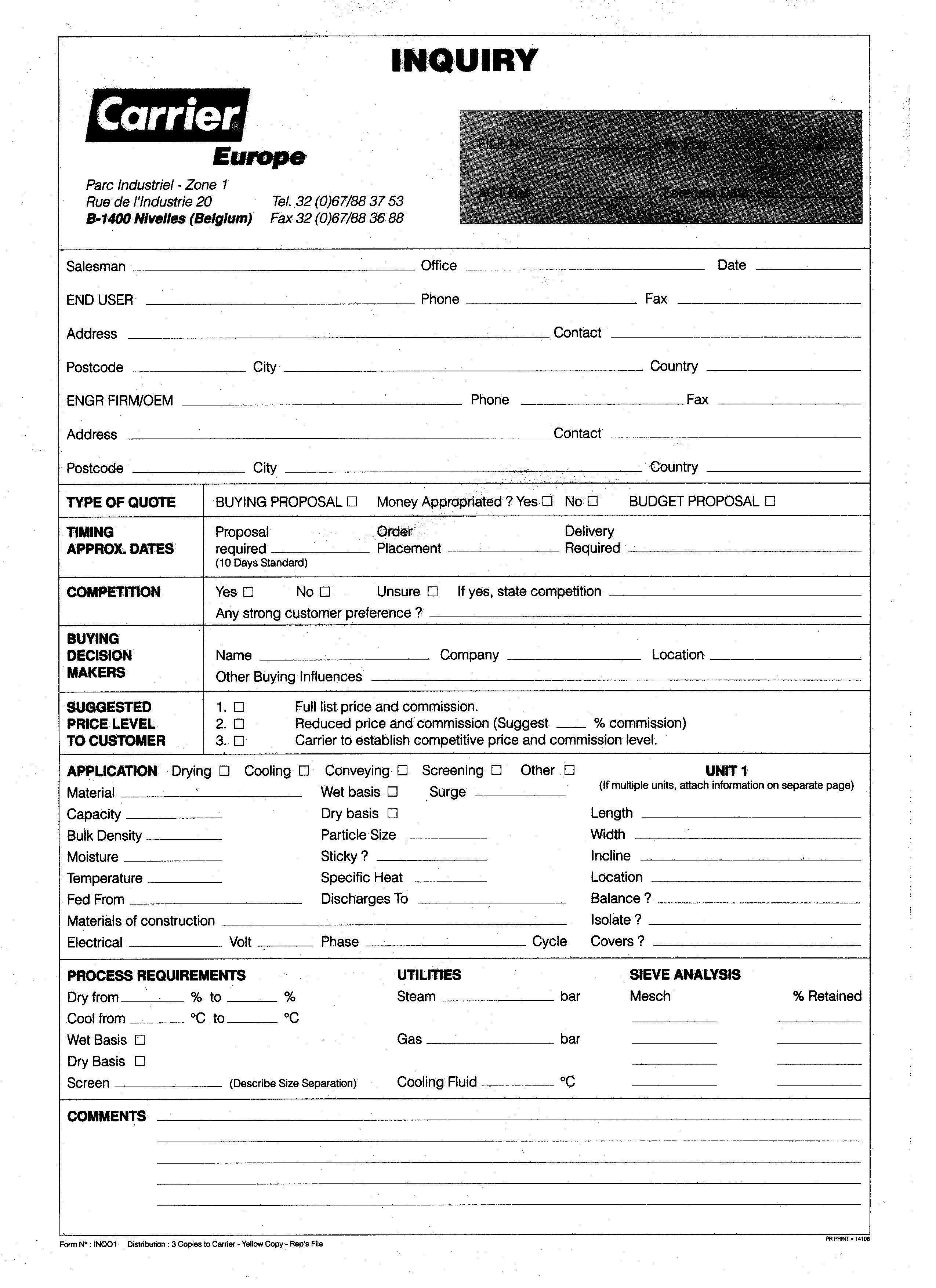

enquiry questionnaire (JPG)

■

We are the leading manufactor of cooling screw conveyor. (heat Exchanger)

Please send us details overproduct and cooling medium.

We assure you of accurate processing.

timm.deetjen@amf-bruns.de ■
