AVA conical mixers and dryers have been developed for short process times with maximum product protection. With the HVW series dryer variants, the product is moved along the length of the heated drum wall. There is an additional option to heat the shaft and helix. This serves to increase the heat transfer by several times. The result is: advantageous short drying times which can be further reduced by means of a vacuum.
System with many advantages
Drying temperatures from –20° to 350° C
Heat distribution media: steam, thermal oil, water
Coolant: Brine solution or water
Temperature transfer by means of cylinder jacket, half-pipe, shaft and helix
Materials: high-carbon steels to high-quality stainless steels, e.g. Hastelloy
Pressure in products and in heating chamber: -1 to +40 bar
GMP and CIP variants, conforming to FDA
Especially gentle homogenisation by means of double-thread mixing helix.
Low rotational speeds in comparison to other systems
Large heating surface and shortened drying times by design
Large operational volume spectrum and optimal residual emptying
Very good evaporation performance
Evaporation processes almost continuously controllable

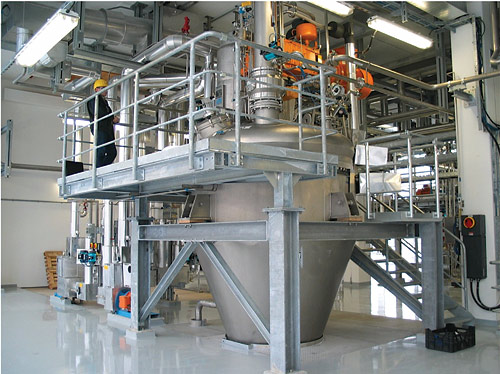

Vertical Dryer by AVA
The right choice for every application
AVA conical mixers and dryers have been developed for short process times with maximum product protection. With the HVW series dryer variants, the product is moved along the length of the heated drum wall. There is an additional option to heat the shaft and helix. This serves to increase the heat transfer by several times. The result is: advantageous short drying times which can be further reduced by means of a vacuum.
System with many advantages
