The PULVERISETTE 19 is a rapidly running cutting mill. Different funnels, rotors, sieve cassettes and collecting vessels enable an optimal adjustment of the system to the application. A sample exhauster with cyclone dust chamber can be used for materials which are difficult to grind. The casing can be opened by a central shutter with one hand. For easy cleaning and changing of the sieve cassette the casing top and the cover can be opened and the cover is additionally removable.
Universal Cutting Mill PULVERISETTE 19
Universal Cutting Mill PULVERISETTE 19
for grinding of soft to medium-hard samples, fibrous materials as well as plastics.
Typical fields of application: Rubber, leather, paper, cardboard, tissue, plastics (in pieces, profiles, tulic, strips), wood, waste (non metallic), coal, animal feed (also pellets), maize, grain, confectionery, malt, farinaceous products, spices, meat (dried), bones, horn, dragees, leaves (dry), fibres, straw, peat, roots, tobacco, cork.
The PULVERISETTE 19 is a rapidly running cutting mill. Different funnels, rotors, sieve cassettes and collecting vessels enable an optimal adjustment of the system to the application. A sample exhauster with cyclone dust chamber can be used for materials which are difficult to grind. The casing can be opened by a central shutter with one hand. For easy cleaning and changing of the sieve cassette the casing top and the cover can be opened and the cover is additionally removable.
Technical data: PULVERISETTE 19
Funnel opening70 x 105 mm
max. feed particle size70 x 80 mm
Throughputup to 60 kg/h
Sieve inserts0,25 – 6 mm
For more information, please visit:
https://edir.bulk-online.com/profile...and-sizing.htm8373 fritsch gmbh milling and sizing.htm
http://www.google.com/search?hl=de&c...btnG=Suche&lr=search?hl=de&client=safari&rls=de de&q=FRITSCH+site%3Abulk online.com&btnG=Suche&lr=
Attachments

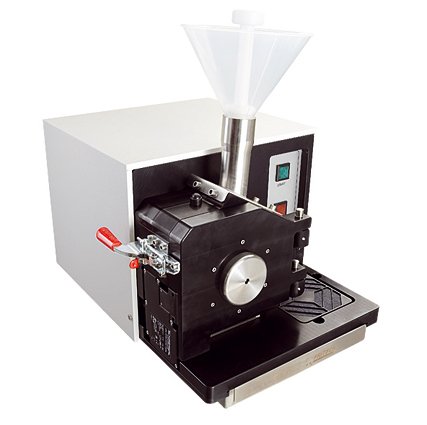

fritsch_p-19_with-standard- (JPG)
fritsch_logo-1 (JPG)
■
