Global market leader again presents an extensive range of new products
REMBE stands for outstanding quality "Made in Germany" for over 40 years. The company will once again present innovations from its three divisions Explosion Protection, Process Safety and Measurement Technology at this year's POWTECH trade fair. Products launched over recent months will provide the major focus: the Q-Rohr for metal dusts, a new type of quench valve and a bursting disc certified by EHEDG for hygienic applications are just a few examples.
EXKOP quench valves have been in the news over recent weeks. Firstly, the tried and trusted EXKOP QV II is now also available for dust class 2 and a reduced explosion pressure (pred) of up to 2 bar. In addition, the launch of the EXKOP QV III, the new big brother of the QV II, means it is now possible to protect lines with diameters of between 300 and 600 mm. With an innovative, space-saving design, it can even be installed in confined areas where space is at a premium. Direct integration of the pressure storage tank keeps the dimensions to the minimum.
EX-GO-VENT HYP: The perfect bursting disc for hygienic applications
The smooth surfaces, in combination with the patented, full surface and tapered sealing concept, enable these special bursting discs to be implemented in previously critical plants, e.g. spray-dryers with/without wet cleaning, fluidized bed dryers, filters and mixers.
EX-GO-VENT-HYP successfully passed the cleanability tests conducted by the commission of the EHEDG (European Hygienic Engineering & Design Group) and confirmed its suitability for CiP cleaning.
(double click on picture to open in new window)

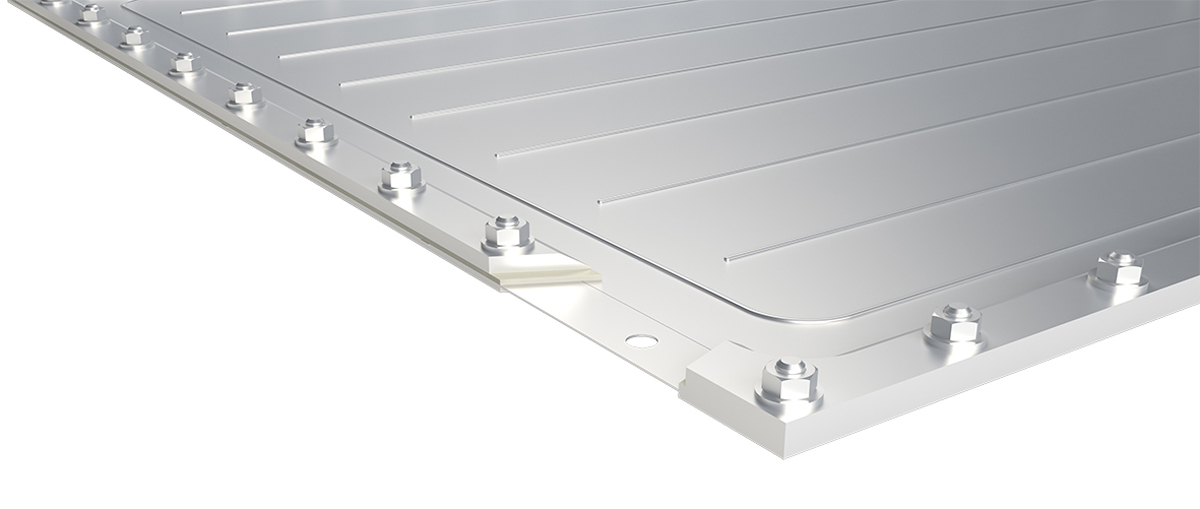

EX-GO-VENT HYP
The EX-GO-VENT HYP can be adapted to the radius of the container avoiding unwanted dead spaces and making it ideal for use with cylindrical tanks. If the product is to be used in outdoor areas, a closed cell silicon cushion insulation is available to prevent the build up of deposits that may occur when the temperature drops below the dew point. Insulation also minimises temperature and energy losses.
These features of the hygienic design of the EX-GO-VENT HYP improve product quality and also protect processes against contamination and production standstills.
Stay Qool – REMBE Q-Rohr
Innovation is a tradition at REMBE. In the area of explosion protection, the invention of flameless venting solutions – the Q-Rohr and Q-Box – is probably the most important in the history of the company.
We have continuously developed and improved these products since the 1980s and they are now in use worldwide. The Q-Rohr and Q-Box can be found in a whole range of sectors from the food processing industry to chemicals and pharmaceuticals. The advantages of flameless venting are immediately obvious: the entire production process remains inside the building and there is no need for expensive, bulky venting ducts that require modifications to be made to existing structures. The integrated bursting disc is fitted with a signalling unit that immediately reports any incidents to the process control system. The special stainless steel mesh filter inlet ensures that the pressure rise and increased noise level associated with free vented explosions are massively reduced to negligible levels in the production room. Dust and flames are retained by the mesh filter inlet.
The Q-Rohr has a round design. Consequently, it is vacuum resistant and ideal for the protection of pneumatic conveying systems as well as many other applications.
(double click on picture to open in new window)

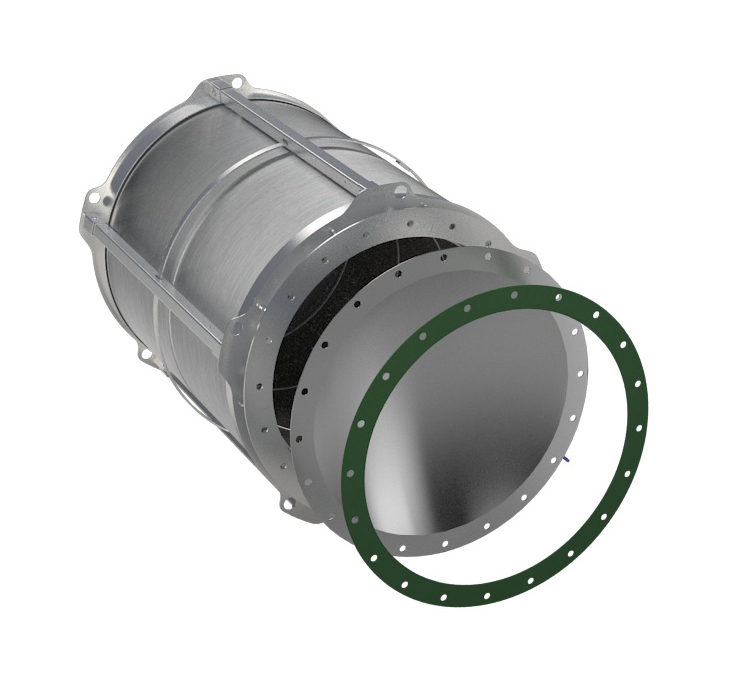

Q-Rohr with integrated bursting disc, signalling unit and gasket
The Q-Rohr and Q-Box also compare favourably with active fire extinguishing systems. They generate no running costs, false triggering damages only the bursting disc and the product remains unaffected. No regular maintenance is required, an annual visual inspection is more than adequate.
The products are certified by ATEX and also comply with many other currently relevant standards.
New: The Q-Rohr can now also be used with metal dusts. Due to their extreme properties in explosive situations (e.g. temperatures can be twice as high as those with most other dusts), metal dusts create special challenges for protection systems. The Q-Rohr is the first system to be certified in accordance with DIN EN 16009.
Visitors can find all the latest innovations and many other products from REMBE at POWTECH 2014 in Hall 4, Stand 215.
POWTECH 2014: REMBE GmbH Safety + Control
Global market leader again presents an extensive range of new products
REMBE stands for outstanding quality "Made in Germany" for over 40 years. The company will once again present innovations from its three divisions Explosion Protection, Process Safety and Measurement Technology at this year's POWTECH trade fair. Products launched over recent months will provide the major focus: the Q-Rohr for metal dusts, a new type of quench valve and a bursting disc certified by EHEDG for hygienic applications are just a few examples.
Bidirectional isolation: EXKOP quench valve – newer, stronger, better
EXKOP quench valves have been in the news over recent weeks. Firstly, the tried and trusted EXKOP QV II is now also available for dust class 2 and a reduced explosion pressure (pred) of up to 2 bar. In addition, the launch of the EXKOP QV III, the new big brother of the QV II, means it is now possible to protect lines with diameters of between 300 and 600 mm. With an innovative, space-saving design, it can even be installed in confined areas where space is at a premium. Direct integration of the pressure storage tank keeps the dimensions to the minimum.
EX-GO-VENT HYP: The perfect bursting disc for hygienic applications
The smooth surfaces, in combination with the patented, full surface and tapered sealing concept, enable these special bursting discs to be implemented in previously critical plants, e.g. spray-dryers with/without wet cleaning, fluidized bed dryers, filters and mixers.
EX-GO-VENT-HYP successfully passed the cleanability tests conducted by the commission of the EHEDG (European Hygienic Engineering & Design Group) and confirmed its suitability for CiP cleaning.
(double click on picture to open in new window)
EX-GO-VENT HYP
The EX-GO-VENT HYP can be adapted to the radius of the container avoiding unwanted dead spaces and making it ideal for use with cylindrical tanks. If the product is to be used in outdoor areas, a closed cell silicon cushion insulation is available to prevent the build up of deposits that may occur when the temperature drops below the dew point. Insulation also minimises temperature and energy losses.
These features of the hygienic design of the EX-GO-VENT HYP improve product quality and also protect processes against contamination and production standstills.
Stay Qool – REMBE Q-Rohr
Innovation is a tradition at REMBE. In the area of explosion protection, the invention of flameless venting solutions – the Q-Rohr and Q-Box – is probably the most important in the history of the company.
We have continuously developed and improved these products since the 1980s and they are now in use worldwide. The Q-Rohr and Q-Box can be found in a whole range of sectors from the food processing industry to chemicals and pharmaceuticals. The advantages of flameless venting are immediately obvious: the entire production process remains inside the building and there is no need for expensive, bulky venting ducts that require modifications to be made to existing structures. The integrated bursting disc is fitted with a signalling unit that immediately reports any incidents to the process control system. The special stainless steel mesh filter inlet ensures that the pressure rise and increased noise level associated with free vented explosions are massively reduced to negligible levels in the production room. Dust and flames are retained by the mesh filter inlet.
The Q-Rohr has a round design. Consequently, it is vacuum resistant and ideal for the protection of pneumatic conveying systems as well as many other applications.
(double click on picture to open in new window)
Q-Rohr with integrated bursting disc, signalling unit and gasket
The Q-Rohr and Q-Box also compare favourably with active fire extinguishing systems. They generate no running costs, false triggering damages only the bursting disc and the product remains unaffected. No regular maintenance is required, an annual visual inspection is more than adequate.
The products are certified by ATEX and also comply with many other currently relevant standards.
New: The Q-Rohr can now also be used with metal dusts. Due to their extreme properties in explosive situations (e.g. temperatures can be twice as high as those with most other dusts), metal dusts create special challenges for protection systems. The Q-Rohr is the first system to be certified in accordance with DIN EN 16009.
Visitors can find all the latest innovations and many other products from REMBE at POWTECH 2014 in Hall 4, Stand 215.
