Ceramic lined pipe and fitting for abrasion resistation Posted in: Forums » General » Wear & Abrasion , on 5. Aug. 2020 - 10:21 Applications:Since ceramics have excellent hardness and strength, FUVALVE ceramic lined pipes are widely used in many high corrosive and abrasive transmission systems for coal fired power plant, steel plant, mining, chemical industry, petro-chemical and metallurgy. The following working conditions are some typical medium in which ceramic lined pipes have been proved to have good performance.Coal powder Fly ashMining slurryMining SlagCoal washingStrong acid slurryPaper making Slurry Specification: Type Ceramic Lined Pipes Size DN15-DN400(1/2”-16”) Pressure Rating PN10,PN16,PN25,PN40, PN63, PN100, PN160, CL150, CL300, CL600, CL900 Jacket Material WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium Lining Material ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4, SSiC End Connection Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5 ■ Abrasive-resistant valves:ceramic lined valvesCorrosive-resisant valves:Telfon lined valvesfuvalve.comceramic-valves.com Basic Chemicals & Fertilizers Basic Metalls Iron & Steel Mining & Quarrying Glass, Ceramics & Porcelain Non-Metallic & Mineral Products Pulpe & Paper Thermal Power Stations Combustion of Solid Fuels Solid Fuels & Energy Generation Coal Production of Solid Fuels

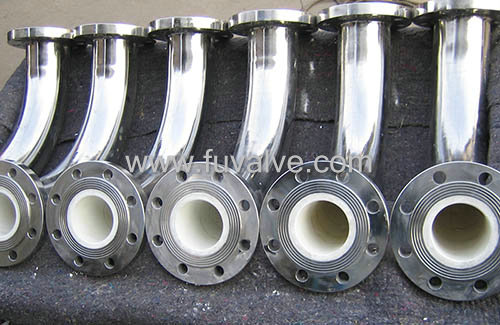

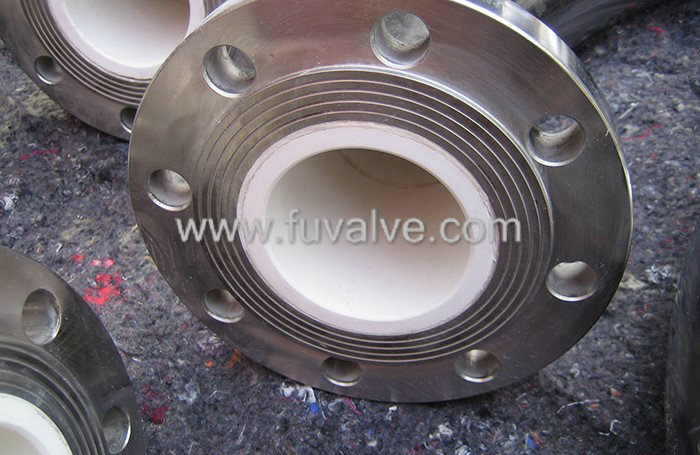

Ceramic lined pipe and fitting for abrasion resistation
Applications:
Since ceramics have excellent hardness and strength, FUVALVE ceramic lined pipes are widely used in many high
corrosive and abrasive transmission systems for coal fired power plant, steel plant, mining, chemical industry,
petro-chemical and metallurgy.
The following working conditions are some typical medium in which ceramic lined pipes have been proved to have good performance.
Coal powder
Fly ash
Mining slurry
Mining Slag
Coal washing
Strong acid slurry
Paper making Slurry
Specification:
■
