Re: Classifying Material On A Dredge
Hi solgold,
A very unusual application. What exactly are you trying to do?
1 - dewater your solids?
2 - cut out a specified size - With a double trommel you might be looking for oversize, middlings, and undersize or slimes.
Do you need some upstream processing - like a grizzly, or an Archamedies screw?
You can size particles with hydrocyclones - that's pretty standard mining dewatering technology.
Regards - John.Rz
www.cospire.com / Engineering Tips ■
Vibrating Screens On Dredge System

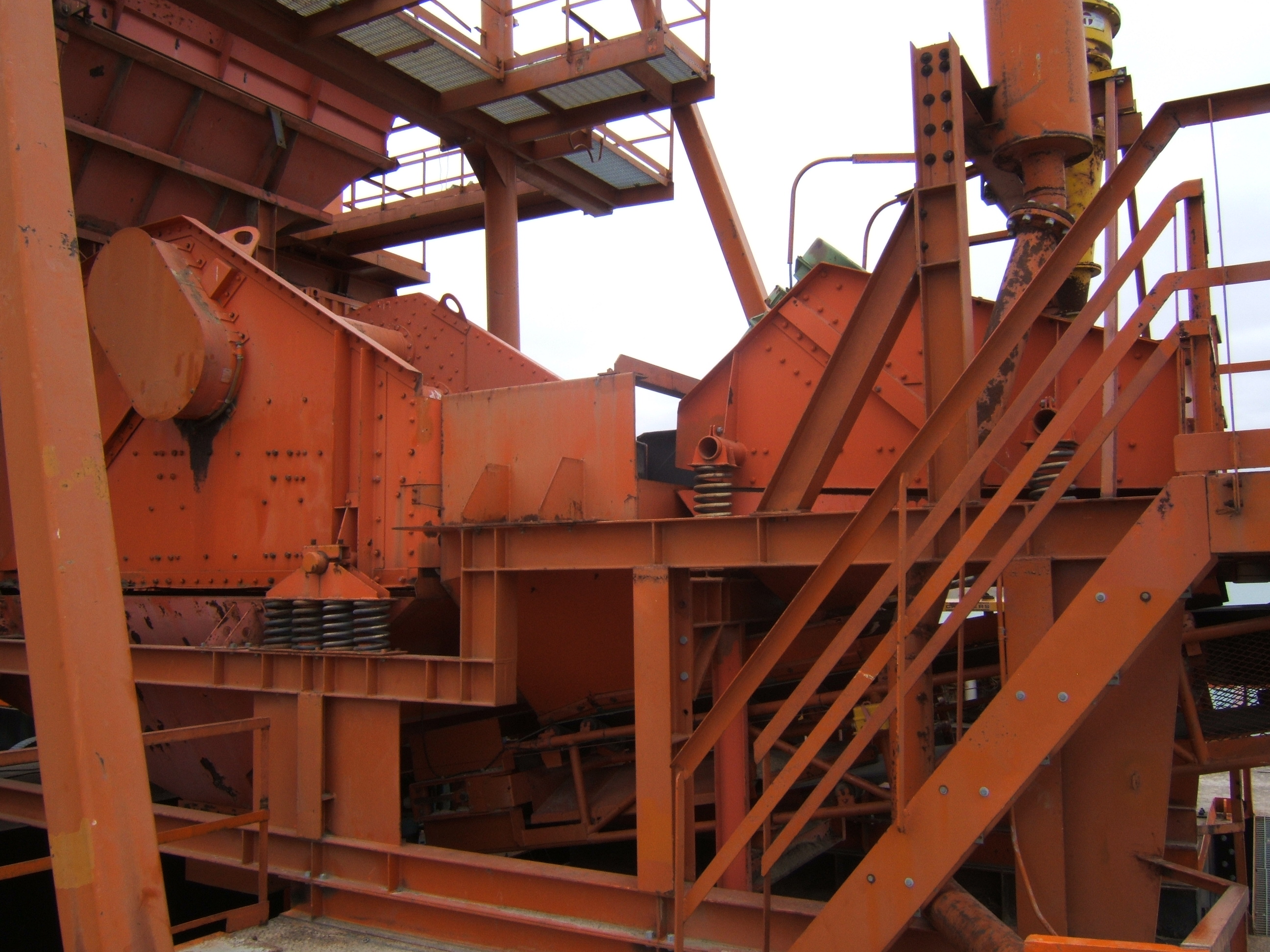

see pic of a very successful operating currently running at one of my customer's dredging operations. Dredging sand and gravel, sizing on vibrating screen with rubber media, dewatering on small vibrating screen following and thru a cyclone after that.
Hope this helps.
Attachments
more float system pics 029 (JPG)
■
System By Royer
As helpful info this system was designed and mfr by ROYER and is operating around Toronto area. You are most welcome to visit if that would be helpful.

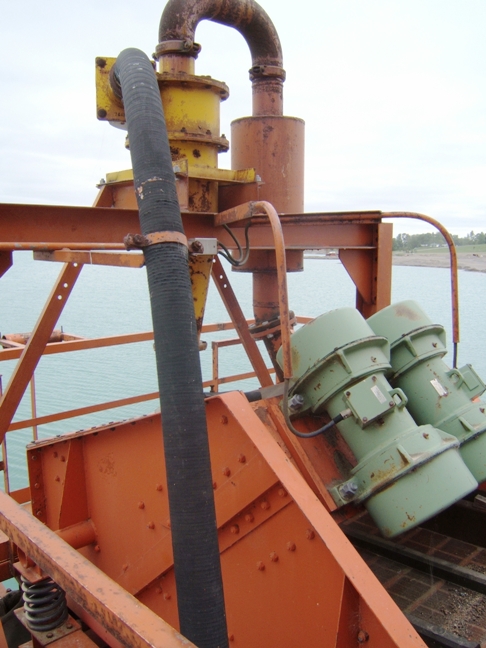

another pic
Attachments
more float system pics vicdom 037 (JPG)
■
Classifying material on a dredge
i was wondering if anyone has experience how to screen material on a cutterhead dredge.i have tried vibrating screens in the past and it did not work .i was looking into a double skin trommel but the weight seems to be a problem.if anybody has a different idea that actually works at a job site please post .
thank you ■
