Coal Stacker Reclaimer

Dear Sir

We have pleasure to offer your company this Stacker Reclaimer with 4348 Meter Conveyors available in our Stock :

The machine were designed by Stephens Adamson Company which is owned by Metso.

Stacking Rates : 4000 Tons Per Hour Each (2 Units Available ) .

Reclaiming Rates : 1500 Tons Per Hour Each (2 Units Available ) .

The machines were extremely under utilized during their time in operation with annual operational hours per machine of :

Stacking 700 Hours .

Reclaiming 1200 Hours .

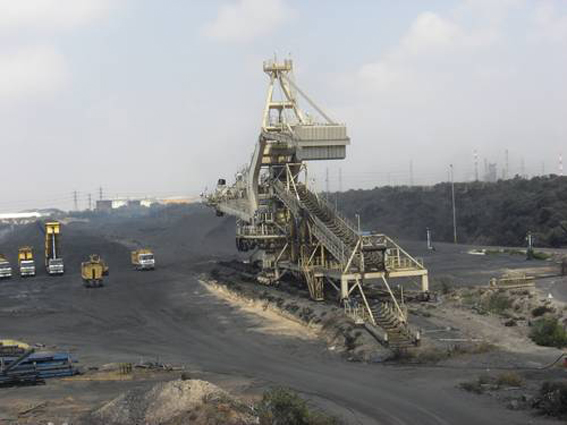

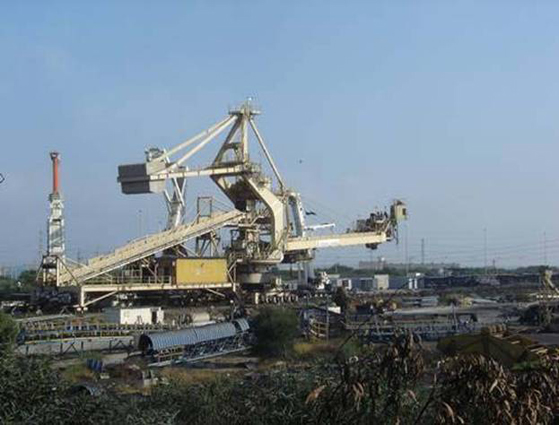

It contains 2 Stacker/Reclamer, Bucket Wheel Type, Type 3RS6.7 X 40, Year of Manufacture 1988, with Stacking Rate of 4000 ton / hour, Reclaiming Rate 1500 ton / hour. C type frame with approx. 40 meter long boom, with bucket wheel and two-way conveyor, Local MCC room and Cable Reels. Counterweight boom with concrete ballast. complete with hydraulic Power Packs, Electric Slewing and Luffing Motors. All mounted on Boigie Rail Sets, with Traverse via 13 electric motors with gear drive. Qty of steel Rail and concrete sleepers. Qty of Conveyors and and rubber belts.

According to the conveyors what we have in our stock , it comes different sizes with total of 4348 Meter as follows

Conveyors Width 1800 MM : 3130 Meter

Conveyor No : 231 : 801 Meter

Conveyor No : 232 : 88 Meter

Conveyor No : 331 : 881 Meter

Conveyor No : 332 : 110 Meter

Conveyor No : 555 : 1250 Meter

Conveyor Width 1400 MM : 1014 Meter

Conveyor No : 234 : 644 Meter

Conveyor No : 235 : 118 Meter

Conveyor No : 333 : 134 Meter

Conveyor No : 515 : 118 Meter

Conveyor Width 600 MM : 204 Meter

Conveyor No : 414 : 56 Meter

Conveyor No : 415 : 56 Meter

Conveyor No : 412 : 46 Meter

Conveyor No : 413 : 46 Meter

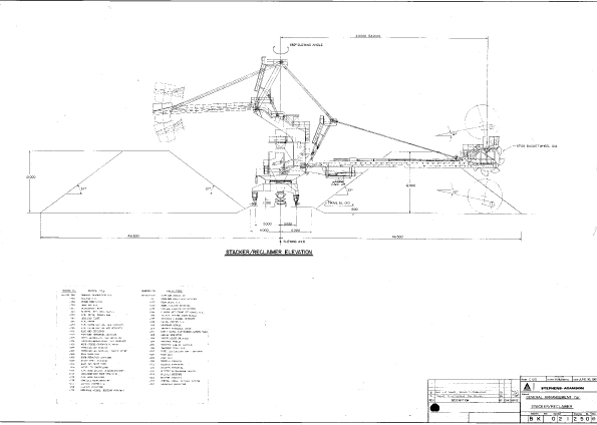

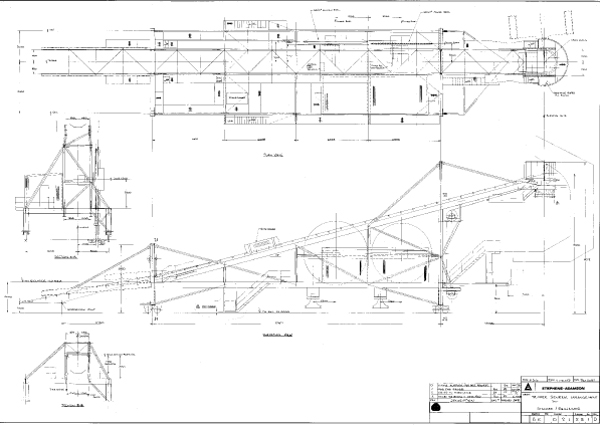

Also we have many spare parts , all the manuals and drawings .

The machine now is dismantled, and located in Port of Iskenderun, Republic of Turkey.

We are planning to sell it or have a Join Venture with one company have a work for it.

The rail for the Stacker is 800 Meter long

We are the owner of these machines

More pictures and details upon Request.

Please don't hesitate to contact me for any further details.

Best Regards

Saad Azzam

Trans Ocean Heavy Equipment

Dubai Branch Manager

Tel: 0097148871193

Fax: 0097148871198

Cell UAE: 00971504204115

Cell Jordan : 00962797444491

More information on "Stacker/Reclaimers":

http://www.google.de/search?num=100&...=&oq=&gsrfai=search?num=100&hl=de&client=safari&rls=en&q=stacker%2Freclaimer+site%3Abulk online.com&aq=f&aqi=&aql=&oq=&gsrfai=

Attachments

1,1_stackerreclaimer (JPG)

1.2_stackerreclaimer (JPG)

1_stacker.reclaimer (JPG)

2_stackerreclaimer (JPG)

3_stackerreclaimer (JPG)

4_stackerreclaimer (JPG)

5_800-meter-rails (JPG)

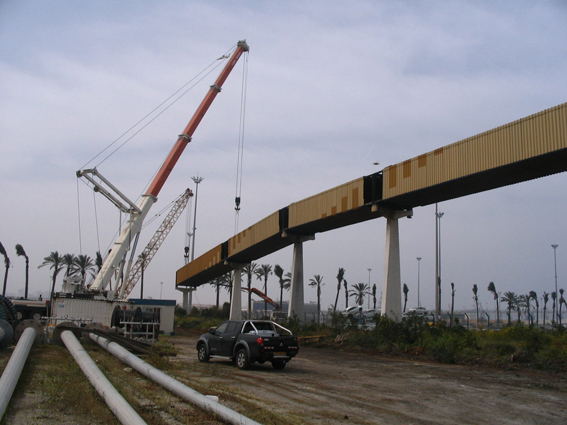

6_1250-meter-conveyor (JPG)
