Telestack Limited continues to excel in providing customised mobile bulk material handling solutions to its wide customer base. The company offers the Ship and Barge loading/unloading industry the most innovative and customised mobile conveying systems on the world market today.
Telestack Limited have recently designed and manufactured a customised Hopper feeder and Radial Telescopic Shiploader to load Woodchips to Handymax / Panamax Vessels in Africa for a company who are shipping the material to Powerstations throughout Europe.
The Telestack System!

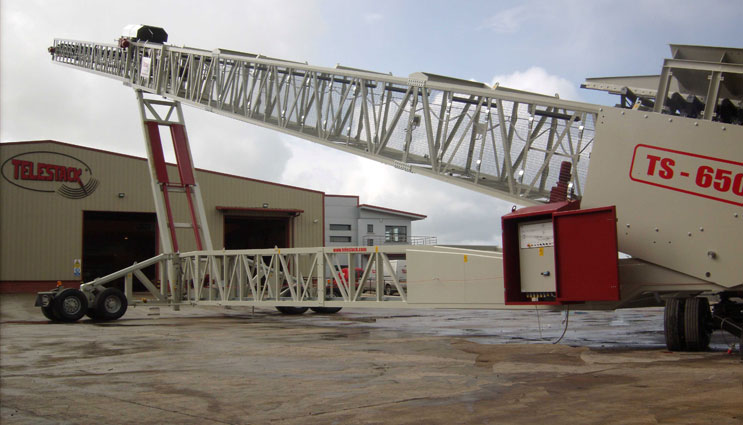

The TS 650 Radial Telescopic Shiploader (51.4 metre - 170ft) and Hopper feeder offers a unique system which ensures complete flexibility and efficiency during the loading process at rates up to 600TPH @ 0.35t/m3 (2000TPH+ @ 1.6 t/m3). The customer was previously using a 120ft top fold single belt conveyor for his loading process, however, as the customer intends to load Handymax / Panamax vessels, their current conveyor was not able to load this type of vessel. The customer identified the Telestack equipment as the perfect solution as it has the ability to reach 2 - 3 to 4 hatches from one single feed-in point at a 12 metre free-board height, which greatly reduces production downtime. Also, with the telescopic feature of the shiploader it allows the customer to trim all parts of hatch with ease, via the optional all function remote control, which ensures maximum flexibility during the loading operation. The shiploader also includes an integrated wheeled dolly unit which allows the customer to move the equipment around the site via the loading shovel on site.

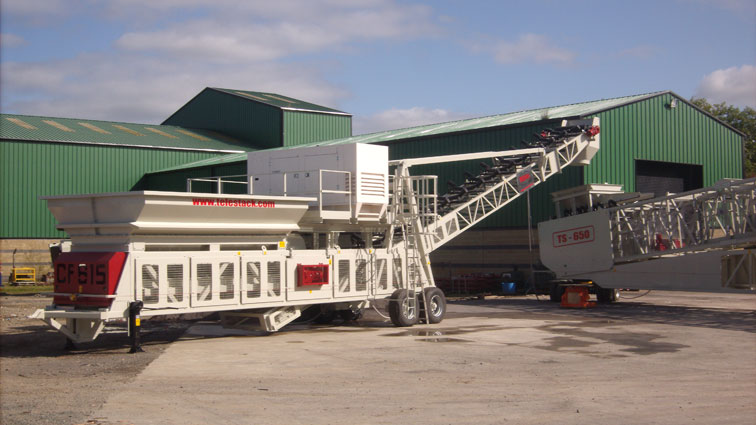

The CF 615 Hopper feeder has an 18m3 hopper capacity for direct loading from a front end loading shovel, with an integrated variable speed drive on the belt feeder so loading rates can be controlled. As with the shiploader, the hopper feeder can be moved around the site via an integrated toe hitch to the rear of the unit, which again allows for enhanced manoeuvrability. This unit also has an integrated 230Kva genset which is used to drive conveyor belts on the CF 615 hopper feeder and TS 650 shiploader, which allows for a fully independent system. The customer also availed of Telestacks’ customised options by installing an over-band magnet to remove any tramp metal which may contaminate the woodchips.
The design and manufacture of these units highlights Telestacks’ drive to provide a complete shiploading system within the Ports / Inland terminals industries which identify the needs of the customer and to provide an efficient, flexible and reliable shiploading system to its global customer base. For these units the customer intends to have the equipment operational by December 2009.
Telestack Shiploading Woodchips
THE COMPLETE SHIPLOADING SYSTEM:
LOADING WOODCHIPS IN AFRICA
Telestack Limited continues to excel in providing customised mobile bulk material handling solutions to its wide customer base. The company offers the Ship and Barge loading/unloading industry the most innovative and customised mobile conveying systems on the world market today.
Telestack Limited have recently designed and manufactured a customised Hopper feeder and Radial Telescopic Shiploader to load Woodchips to Handymax / Panamax Vessels in Africa for a company who are shipping the material to Powerstations throughout Europe.
The Telestack System!
The TS 650 Radial Telescopic Shiploader (51.4 metre - 170ft) and Hopper feeder offers a unique system which ensures complete flexibility and efficiency during the loading process at rates up to 600TPH @ 0.35t/m3 (2000TPH+ @ 1.6 t/m3). The customer was previously using a 120ft top fold single belt conveyor for his loading process, however, as the customer intends to load Handymax / Panamax vessels, their current conveyor was not able to load this type of vessel. The customer identified the Telestack equipment as the perfect solution as it has the ability to reach 2 - 3 to 4 hatches from one single feed-in point at a 12 metre free-board height, which greatly reduces production downtime. Also, with the telescopic feature of the shiploader it allows the customer to trim all parts of hatch with ease, via the optional all function remote control, which ensures maximum flexibility during the loading operation. The shiploader also includes an integrated wheeled dolly unit which allows the customer to move the equipment around the site via the loading shovel on site.
The CF 615 Hopper feeder has an 18m3 hopper capacity for direct loading from a front end loading shovel, with an integrated variable speed drive on the belt feeder so loading rates can be controlled. As with the shiploader, the hopper feeder can be moved around the site via an integrated toe hitch to the rear of the unit, which again allows for enhanced manoeuvrability. This unit also has an integrated 230Kva genset which is used to drive conveyor belts on the CF 615 hopper feeder and TS 650 shiploader, which allows for a fully independent system. The customer also availed of Telestacks’ customised options by installing an over-band magnet to remove any tramp metal which may contaminate the woodchips.
The design and manufacture of these units highlights Telestacks’ drive to provide a complete shiploading system within the Ports / Inland terminals industries which identify the needs of the customer and to provide an efficient, flexible and reliable shiploading system to its global customer base. For these units the customer intends to have the equipment operational by December 2009.
